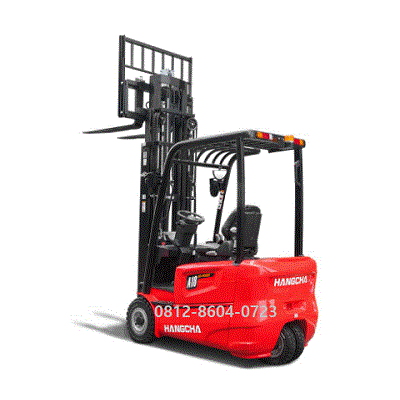

Hangcha Forklift A20 | 2 ton

Description

Hangcha Forklift A20 | 2 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift A20 | 2 ton

Hangcha Forklift A20 | 2 ton, Specifications

The Hangcha A Series 2-ton (A20) forklift is a versatile counterbalance truck available in both Electric (CPD20) and Internal Combustion/Diesel (CPCD20) versions. Below are the key technical specifications for both configurations.

Performance Specifications

Both models are designed for high efficiency with standard lifting capacities and center distances.
Feature Electric (CPD20-AC4) Diesel (CPCD20-AG2).
Rated Capacity 2,000 kg 2,000 kg.
Load Center 500 mm 500 mm.
Max. Travel Speed 15–17 km/h 17–19 km/h.
Lifting Speed (Laden) 300–400 mm/s 530 mm/s.
Gradeability (Laden) 15% 20%.

Dimensions & Weight

The A Series is known for its compact design, making it suitable for narrow-aisle warehouse operations.
Overall Width: 1,150 mm – 1,170 mm.
Turning Radius: Approx. 2,030 mm (Electric) to 2,170 mm (Diesel).
Standard Lift Height: 3,000 mm (Duplex Mast).
Overhead Guard Height: ~2,070 mm.
Service Weight: * Electric: ~3,700 kg (including battery).
Diesel: ~3,320 kg.

Power & Battery Systems

Depending on the unit’s specific sub-model, it may use Lead-Acid, Lithium-ion, or Diesel power.
Electric Drive: Typically uses a 48V or 80V system.
Standard Battery: 48V/600Ah (Lead Acid) or optional CATL Lithium-ion (80V/271Ah).
Motor Type: High-efficiency AC Traction and Pump motors.
Diesel Drive: Often powered by Xinchai or optional Isuzu/Yanmar engines.
Standard Engine: Xinchai C490BPG or A498BT1.

Key Features

Soft Landing System: Automatically reduces fork speed when they are 60–100mm from the ground to prevent impact.
Ergonomics: Large floor space, adjustable steering wheel, and a suspension seat to reduce operator fatigue.
Visibility: “Wide-view” mast design provides better forward sightlines for safer load handling.
Braking: Features regenerative braking (Electric) and an emergency power-off switch for safety compliance.
Note: Specifications can vary slightly depending on the specific mast choice (e.g., Triplex Full Free Mast) and optional attachments like side shifters.
Would you like me to find the specific maintenance schedule for this unit or look up local dealers for pricing?

Characteristics

Model : Electric Counterbalanced
Operator Position : Sit on Type
Load Capacity : 2000 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
