Hangcha Forklift HRT25 | 2.5 ton

Description

Hangcha Forklift HRT25 | 2.5 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift HRT25 | 2.5 ton

Hangcha Forklift HRT25 | 2.5 ton, Specifications

The Hangcha HRT25 (often designated as CPCD25-RT) is a 2.5-ton Rough Terrain Forklift designed for outdoor applications where ground conditions are uneven or unstable.
It is available in both 2WD and 4WD configurations.
Below are the technical specifications for the 2.5-ton model:

Performance & Capacity

Rated Capacity: 2,500 kg (2.5 Ton).
Load Center: 500 mm.
Max. Travel Speed (Laden/Unladen): 24 / 26 km/h.
Max. Lift Speed (Laden): 500 mm/s.
Gradeability (Laden): 25% (2WD) to 58% (4WD).
Turning Radius (Outside): approx. 2,235 mm – 3,250 mm (varies by drive type).

Dimensions

Standard Lift Height: 3,000 mm (Duplex Mast).
Max. Lift Height: Up to 6,000 mm (Triplex Mast options).
Overall Length (to face of forks): 3,085 mm.
Overall Width: 1,557 mm.
Height (Overhead Guard): 2,390 mm.
Ground Clearance (at center of wheelbase): 270 mm (provides high clearance for obstacles).
Fork Size: 9$40 \times 122 \times 1,220$ mm.

Engine & Drivetrain

Power Type: Diesel.
Engine Options: * Yanmar 4TNE98 (Rated Output: 42.1 kW @ 2,300 rpm).
Kubota V2607 (Rated Output: 47.3 kW @ 2,400 rpm).
Transmission: Power-shift or Suspension Hydraulic Transmission (2 forward / 1 reverse).
Tires: Large pneumatic deep-tread tires for grip.
Front: 12-16.5-14PR.
Rear: 10.0/75-15.3-14PR.

Key Features

Differential Lock: Most models include a manual or electronic differential lock to prevent wheel spin in mud or sand.
Suspension Cabin: The overhead guard or cabin is typically mounted on rubber dampers to reduce vibration for the operator.
Lighting: Full LED lighting system for improved visibility during night operations.
Cooling System: Large-capacity aluminum radiator with an optimized air channel for heavy-duty work in high temperatures.
Would you like me to find the specific pricing for this unit or a comparison with the 4WD version (RT4)?

Characteristics

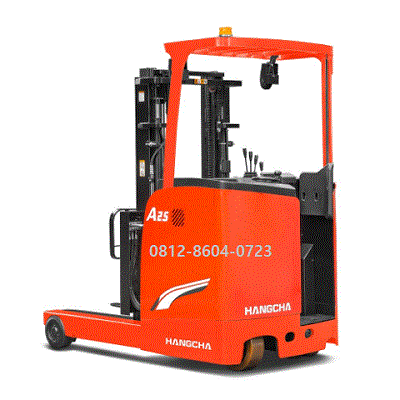

Model : Electric Reach Truck
Operator Position : Stand on Type
Load Capacity : 2500 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
