Hangcha Forklift X60 | 6 ton

Description

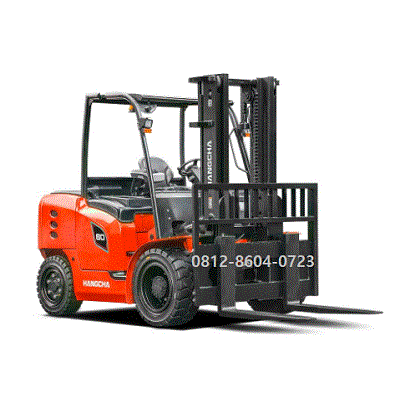

Hangcha Forklift X60 | 6 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift X60 | 6 ton

Hangcha Forklift X60 | 6 ton, Specifications

The Hangcha X Series 6-ton forklift (often designated as CPCD60-X) is a high-performance, heavy-duty machine designed for demanding industrial environments.
It is available in both Internal Combustion (Diesel/LPG) and Electric (Lithium-ion) versions.
Below are the key technical specifications for the 6-ton (6,000 kg) model.

Technical Specifications (IC Diesel Version)

The “X Series” is the premium evolution of the standard XF series, featuring better fuel efficiency and lower vibration.
Category Specification Details;
Model CPCD60-X.
Rated Capacity 6,000 kg (6.0 Ton).
Load Center 600 mm.
Standard Lift Height 3,000 mm (Duplex Mast).
Travel Speed (Laden) ~23–26 km/h.
Lift Speed (Laden) ~410–450 mm/s.
Turning Radius ~3,280 mm.
Engine Options Deutz TCD3.6 / Cummins F3.8 / Yuchai (Regional dependent).
Tires Pneumatic (Standard) or Solid (Optional).

Key Features of the X Series

Performance: Compared to older series, the X Series offers a 10% reduction in fuel consumption (for common rail engines) and a 15% increase in gradeability (climbing power).
Visibility: The “Wide-View” mast design increases forward visibility by approximately 15%, making it safer for the operator to navigate tight spaces with large loads.

Operator Comfort:

15% more legroom compared to previous generations.
Suspended overhead guard to isolate the driver from engine vibrations.
Large-screen LCD dashboard with real-time diagnostics.
Durability: Features an aluminous plate-fin radiator and optimized heat dissipation channels, which keep the engine and hydraulic oil temperatures lower even in 24/7 operations.

Electric (Lithium-Ion) Alternative

If your unit is the X Series Electric (CPD60-X), it typically includes:
Battery: 80V or 96V high-capacity Lithium Iron Phosphate (LiFePO4).
Maintenance: Zero battery maintenance (no watering required).
Protection: IPX4 water resistance rating, allowing for outdoor use in rain.
Charging: Supports “opportunity charging,” reaching 100% in ~2 hours with a high-speed charger.
Note: Specs can vary slightly depending on the specific engine installed (e.g., Stage V for Europe vs. Tier 4 for North America).
Would you like me to find the specific maintenance schedule or the hydraulic pressure requirements for this 6-ton model?

Characteristics

Model : Electric Counterbalanced
Operator Position : Sit on Type
Load Capacity : 6000 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
