Hangcha Pallet Mover A27 | 2.7 ton

Description

Hangcha Pallet Mover A27 | 2.7 ton

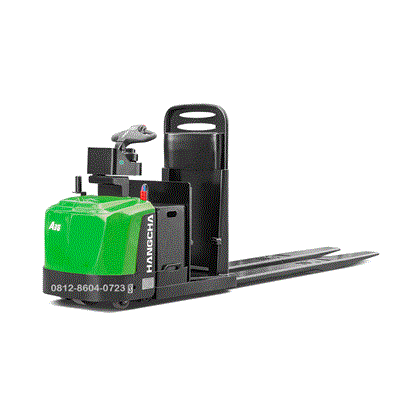

The Hangcha A27 (CBD27-A27) is a heavy-duty electric pallet mover designed for high-intensity warehouse operations.
It is widely recognized for its 2.7-ton (6,000 lbs) lifting capacity and is typically powered by Lithium-ion technology.
Below are the key specifications and features for this unit:

Category Specification

Model Designation CBD27-A27 (A Series).
Rated Capacity 2,700 kg (6,000 lbs).
Load Center 600 mm (24 in).
Power Type Electric (24V Lithium-ion or Lead-Acid).
Standard Battery 24V / 210Ah – 404Ah (varies by regional config).
Drive Control CURTIS AC Controller.
Travel Speed ~6.0 km/h (Laden) / ~9.0 km/h (Unladen).
Lift Height 120 mm – 125 mm.
Lowered Fork Height 82 mm (approx. 3.25 in).
Turning Radius ~1400 mm – 1600 mm (depending on fork length).

Key Features

Advanced Drive System: Equipped with a maintenance-free AC Brushless Motor that provides high torque, excellent acceleration, and better gradeability (climbing ability) on ramps.
Lithium-ion Technology: Most modern A27 units come with CATL-developed Lithium-Iron Phosphate (LiFePO4) batteries, allowing for opportunity charging (fast charging during breaks) and zero maintenance.

Safety Systems:

Triple Braking: Includes regenerative braking, reverse current braking, and an emergency brake button.
Slope Anti-Slip: Prevents the truck from rolling backward when starting on an incline.
Automatic Speed Reduction: Automatically slows the vehicle down during sharp turns to prevent tipping.
Ergonomics: Features a REMA tiller head (multi-functional handle) designed for one-handed operation.2 The foldable platform (on “Rider” models) usually includes shock absorption to reduce operator fatigue.
Durability: Uses high-strength steel plate stamping for the chassis and heavy-duty “box-type” forks to resist impact and wear in busy shipping docks.

Common Options

Fork Dimensions: Available in various lengths (e.g., 1150mm, 1220mm) and widths (540mm, 680mm).
Operating Type: Can be configured as a Pedestrian (walkie) or Stand-on (with platform and guard rails).
Cold Storage Package: Optional protection for use in refrigerated environments down to -30°C.
