Hangcha Very Narrow X14 | 1.4 ton

Description

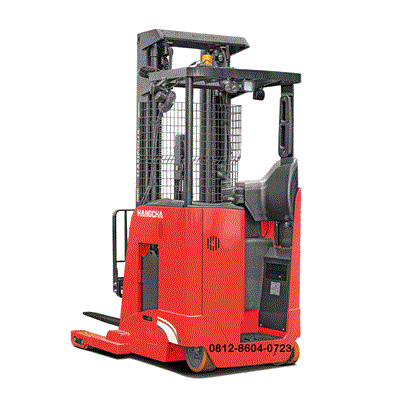

Hangcha Very Narrow X14 | 1.4 ton

The Hangcha X Series 1.4-ton (CQD14) is a high-performance reach truck specifically designed for Narrow Aisle (NA) and Very Narrow Aisle (VNA) warehouse configurations.
It is often equipped with either Lead-Acid or Lithium-ion (Li-Ion) power systems.
Below are the technical specifications for the 1.4-ton model:

Feature Specification

Model CQD14-X14 (X Series).
Rated Capacity 1,400 kg (approx. 3,000 lbs).
Load Center 600 mm (24 in).
Power Type Electric (36V or 48V / Li-Ion options)
Travel Speed (Loaded) 10.5 km/h (approx. 6.5 mph).
Travel Speed (Unloaded) 12.0 km/h (approx. 7.5 mph).
Gradeability (Loaded/Unloaded) 10% / 15%.

Mast & Lifting Performance

Standard Lift Height: 5,030 mm (198 in)
Maximum Lift Height: Up to 10,160 mm (approx.4 400 in) with heavy-duty triplex mast options.
Free Lift: Variable based on mast type (Standard triplex is approx. 1,600–2,400 mm).
Lowering Speed: Controlled via a soft-landing system to protect fragile goods.

Dimensions & Maneuverability

Turning Radius: Very tight at approximately 1,670 mm (65.7 in), allowing it to turn within aisles as narrow as 2.8 meters depending on pallet size.
Overall Width: 1,080 mm (approx.7 42.5 in).
Overall Length (to face of forks): Approx. 1,850–2,020 mm.
Chassis Type: 4-pivot structure with a low center of gravity for high-reach stability.

Key Technology & Features

Drive System: Features high-quality components, typically including ZF transmissions and Schabmüller drive motors.
Braking: Equipped with EPB (Electric Parking Brake) and regenerative braking to extend battery life.
Hydraulics: Proportional valve system for smooth, precise fork movements and “soft landing” to prevent ground impact.
Safety: * Automatic speed reduction during cornering.
Speed limits automatically applied when the mast is raised.
Emergency cut-off switch and operator presence sensing.
