Hangcha Very Narrow X16 | 1.6 ton

Description

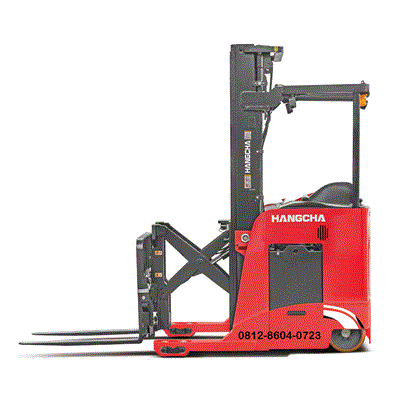

Hangcha Very Narrow X16 | 1.6 ton

The Hangcha X series 1.6-ton Very Narrow Aisle (VNA) truck—often referred to as the Turret Stockpicker or Reach Truck within the X series lineup—is designed for high-density storage where aisle space is extremely limited.
Below are the key specifications for the 1.6-ton (1,600 kg) model, typically categorized under the CQD16 (Reach) or Turret configurations.

Core Performance Specifications

The X series is Hangcha’s high-end line, featuring advanced AC technology and improved ergonomics over the standard A series.
Feature Specification (1.6 Ton Model).
Model Designation X Series (e.g., CQD16-X).
Rated Capacity 1,600 kg (3,500 lbs).
Load Center 600 mm.
Max Lift Height Up to 10,220 mm (10.2 meters).
Travel Speed 10.5 – 11.0 km/h (Laden/Unladen).
Lift Speed Approx. 0.32 – 0.55 m/s.
Voltage 48V or 80V (depending on battery choice).
Drive Motor AC Brushless (High Efficiency).

Physical Dimensions & Maneuverability

The “Very Narrow” designation means this unit is optimized for aisles often as narrow as 1.8 to 2.5 meters, depending on the pallet size and if it is a Turret or Reach configuration.
Overall Width: Usually ranges from 1,080 mm to 1,270 mm.
Turning Radius: Highly compact, typically around 1,700$ mm.
Chassis Stability: Features a low center of gravity with the battery positioned at the base of the chassis to maintain stability at high lifts.
Mast Options: Available in Triplex (3-stage) full free lift masts to reach maximum warehouse heights while maintaining a low collapsed height.

Key Features of the X Series

Advanced Control: Uses an electro-hydraulic proportional valve system (fingertip controls) for precise fork movement.
Lithium-Ion Ready: While lead-acid is standard, the X series is optimized for Li-Ion technology, allowing for “opportunity charging” (charging during breaks) and zero maintenance.
Safety Systems: * Automatic speed reduction during cornering.
Electronic lifting height limits.
EPB (Electric Parking Brake) instead of a traditional handbrake.
Operator Comfort: Suspended cabin and adjustable armrests to reduce fatigue during long shifts.

Application Note

The 1.6-ton X series is ideal for:
High-Rack Warehousing: Stacking pallets above 8 meters.
Cold Storage: Often available with specialized cabin heaters and seals for freezer environments.
Narrow Aisles: Replacing standard counterbalance forklifts to increase storage density by up to 50%.
