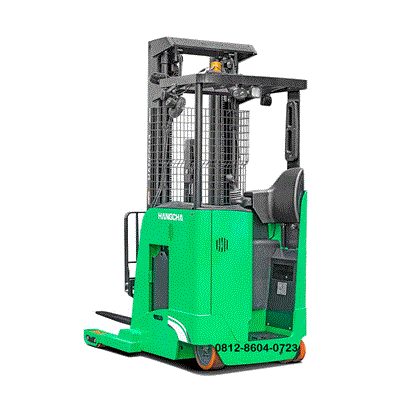

Hangcha Very Narrow X18 | 1.8 ton

Description

Hangcha Very Narrow X18 | 1.8 ton

The Hangcha X Series Very Narrow Aisle (VNA) trucks, particularly models with a 1.8-ton (1,800kg) capacity, are high-efficiency warehouse solutions designed to operate in aisles as narrow as 1.6–1.8 meters.
While “X18” often refers to the X-Series Lithium-ion Pantograph Reach Truck or the X-Series Electric Counterbalance, in a VNA context, it typically refers to the X Series 3-Way Turret Truck (Man-down or Man-up) configured for 1.8-ton loads.

Feature Specification

Load Capacity 1,800 kg (1.8 Ton).
Load Center 500 mm / 600 mm (Standard).
Power Type Electric (Lead-Acid or Lithium-ion).
Travel Speed Up to 10.5 km/h (Laden).
Lift Speed ~300 – 450 mm/s (Depending on motor/load).
Lowering Speed ~450 mm/s.
Maximum Lift Height Up to 10,000 mm (10 meters).
Minimum Aisle Width Approx. 1,650 mm – 1,900 mm (Varies by pallet size).

Performance & Technology

3-Way Turret System: The fork carriage can rotate 180 degrees and shift left or right, allowing the truck to stack pallets on either side of a narrow aisle without the vehicle itself turning.
AC Drive System: Utilizes a full AC motor and controller (typically Curtis or Inmotion) for precise speed control, regenerative braking, and reduced maintenance.
Stability: Features a low center of gravity and a heavy-duty chassis to maintain high residual capacity at full lift heights.
EPS (Electric Power Steering): Standard on the X-Series to provide effortless maneuverability in tight spaces.

Efficiency & Ergonomics

Lithium-ion Advantage: Often available with Hangcha’s “Green” Lithium technology, allowing for 2-hour fast charging and opportunity charging during breaks.
LCD Dashboard: A multi-function color screen provides real-time data on battery status, travel speed, and fault self-diagnosis.
Soft Landing System: Automatically slows the forks before they touch the ground to protect fragile loads and the floor.

Safety Features

Cornering Speed Control: Automatically reduces speed when turning to prevent tipping.
Mast Height Speed Limit: Travel speed is automatically restricted once the mast is raised above a certain threshold.
Optional Camera System: Includes a mast-mounted camera and in-cab monitor to help operators align forks at high racking levels (8m+).
