Hangcha Very Narrow X20 | 2 ton

Description

Hangcha Very Narrow X20 | 2 ton

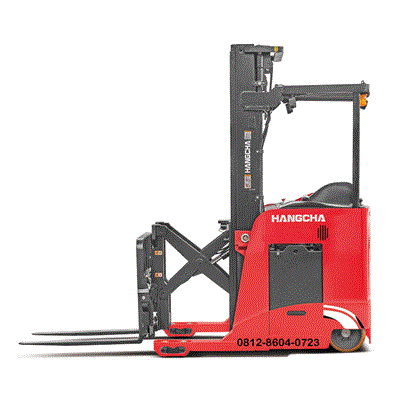

The Hangcha X Series 2-ton Narrow Aisle Reach Truck (often referred to as the SR20 or X20 in specific regional catalogs) is a high-performance electric warehouse solution designed for high-density storage.
It is available in both Lead-Acid and Lithium-Ion (Li-Ion) versions.
Below are the primary technical specifications for the 2.0-ton model (2,000 kg):

Core Technical Data

Feature Specification;
Model Designation SR20 (X Series).
Rated Capacity 2,000 kg (4,500 lbs).
Load Center 600 mm (24 in).
Drive Type Electric (36V or 48V options)
Standard Lift Height 5.03 m (198 in).
Max Lift Height Up to 10.16 m (Heavy-duty triplex mast)
Turning Radius approx 1.67 m (65.7 in).

Performance & Speed

Travel Speed (Laden/Unladen): 10.5 km/h – 12.0 km/h.
Lifting Speed (Laden): Approx. 0.35 m/s to 0.50 m/s (depending on motor configuration).
Gradeability (Laden): Up to 10%.
Aisle Width Requirement: Can operate in aisles as narrow as 1.8 m (depending on pallet size and configuration).

Key Features & Technology

3-Way System (Optional): Many “Very Narrow Aisle” (VNA) configurations of this series feature a turret head for 3-way stacking without turning the truck.
Precision Control: Equipped with a Fingertip Control System and an integrated joystick for smooth hydraulic movements.
Stability: Features a four-pivot structure and a low center of gravity. It includes Automatic Speed Reduction when cornering or when the mast is raised.
Smart Systems: * Soft Landing: Automatically slows the forks before they hit the ground.
EPB (Electric Parking Brake): Provides intelligent braking on inclines.
Regenerative Braking: Recovers energy during deceleration to extend battery life.

Battery Options

Lead-Acid: High-capacity options ranging from 36 V/660 Ah to 1100 Ah.
Lithium-Ion: 80V high-voltage or 48V systems (regional specific), supporting opportunity charging (full charge in approx 2 hours).
