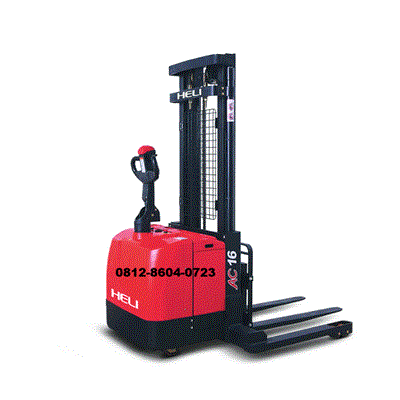

Heli Pallet Stacker CDD16 | 1.6 ton

Description

Heli Pallet Stacker CDD16 | 1.6 ton

The Heli CDD16 is a versatile full-electric pallet stacker designed for warehouse operations requiring a 1.6-ton (1,600 kg) capacity.
It is typically available in several configurations, most notably the Narrow Leg (Forkover) and Wide Leg (Straddle) versions, depending on the type of pallets you use (open vs. closed).
Below are the technical specifications for the most common variants (CDD16-D930/950/360/960).

Technical Specifications

Rated Capacity 1,600 kg (1.6 Ton).
Load Center 600 mm.
Power Type Electric (Battery).
Operator Type Pedestrian (Walkie) / Stand-on (with platform).
Travel Speed 5.0 / 5.0 km/h (Laden / Unladen).
Lift Speed 130 / 230 mm/s (Laden / Unladen).
Gradeability 5% / 7% (Laden / Unladen).

Dimensions & Mast Options

The CDD16 offers various mast types, impacting the lifting height and the stacker’s ability to operate in low-clearance areas.
Standard Lift Heights: Range from 1,400 mm to 5,800 mm.

Mast Types:
2-Stage Standard: For basic lifting needs.
3-Stage Full Free (ZSM): Best for high reach and areas with low ceilings (allows the forks to rise without increasing the mast height immediately).
Turning Radius: Approx. 1,630 mm (platform up) to 2,040 mm (platform down).
Fork Dimensions: Typically 1,150 mm (L) x 185 mm (W) x 55 mm (T).

Electrical & Drive System

The CDD16 is built for reliability and ease of maintenance using high-quality international components.
Drive Motor: 1.5 kW AC (Maintenance-free, brushless).
Lift Motor: 3.0 kW DC.
Controller: USA CURTIS AC Controller (Industry standard for precision and reliability).
Battery: 24V / 280Ah (Lead-acid) or Optional Lithium-ion.
Braking: Electromagnetic / Regenerative braking.

Key Features

Electronic Power Steering (EPS): Makes the unit very light and easy to maneuver in tight aisles.

Ergonomic Handle: Integrated buttons for lifting, lowering, and a “tortoise” speed mode for precise maneuvering.
Safety Features: Emergency reverse “belly” button, emergency power disconnect, and automatic lifting limit switches.
Note on Pallet Compatibility: > * The Narrow Leg (D930/950) model is only suitable for Open Pallets (Euro pallets) where there are no bottom boards.

The Wide Leg/Straddle (960/360) model is required if you are lifting Closed Pallets (Gitterboxes or pallets with bottom slats).
