Heli Pallet Stacker CQDM15 | 1.5 ton

Description

Heli Pallet Stacker CQDM15 | 1.5 ton

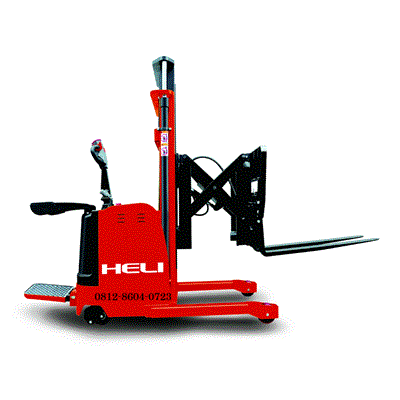

The Heli CQDM15-810 is a 1.5-ton electric reach-style pallet stacker.
Unlike standard stackers, it features a moving mast (reach function) and a counterbalance design, allowing it to handle closed-bottom pallets and operate with higher stability.
Below are the detailed specifications for the CQDM15 model:

General Performance

Load Capacity: 1,500 kg (1.5 Ton).
Load Center: 500 mm.
Operating Type: Stand-on (Platform) or Walkie.
Travel Speed (Loaded/Unloaded): 5.0 / 5.5 km/h.
Lifting Speed (Loaded/Unloaded): 130 / 180 mm/s.
Gradeability (Laden/Unladen): 3% / 5%.

Dimensional Data

Overall Length: 2,440 mm (can vary based on fork extension).
Overall Width: 1,083 mm.
Mast Height (Lowered): Approx. 2,040 mm (varies by mast stage).
Standard Lift Height: Commonly 3,000 mm to 4,500 mm (options up to 5,000 mm).
Reach Distance (Mast Stroke): 0–500 mm.
Turning Radius: 1,596 mm to 2,040 mm.
Aisle Width (800×1200 pallet): ~2,620 mm to 3,050 mm.

Electrical & Drive System

The unit typically uses a Curtis (USA) or ZAPI (Italy) controller for high-precision motor management.
Drive Motor (AC): 1.5 kW (Maintenance-free brushless motor)
Lift Motor (DC): 3.0 kW.
Steering Motor (EPS): 0.15 kW (Electronic Power Steering).

Battery Options:
Lead-Acid: 24V / 280Ah.
Lithium-Ion (Li-ion): 24V / 210Ah or 200Ah (Fast charging, maintenance-free).

Key Features

Reach Mast: The mast moves forward and backward, allowing the forks to pick up pallets even if they have bottom boards (closed pallets).
Regenerative Braking: Recovers energy during deceleration to extend battery life.
Automatic Deceleration: Safety feature that slows the vehicle down when turning at high speeds.
Safety Features: Emergency “belly button” reverse switch on the handle, automatic lifting limit switch, and tilt functionality (3° forward / 5° backward).
