Hyundai Forklift 15BT-9U | 1.5 ton

Description

Hyundai Forklift 15BT-9U | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned Hyundai Forklift 15BT-9U | 1.5 ton

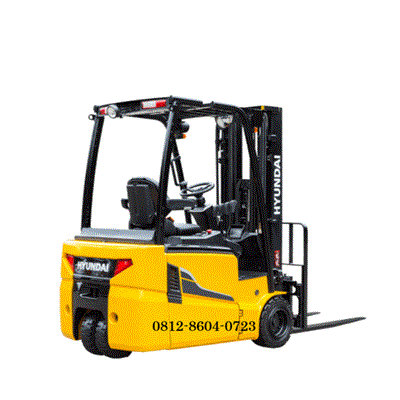

The Hyundai 15BT-9U is a 3-wheel electric sit-down counterbalanced forklift designed for tight warehouse aisles and high-efficiency material handling.

Technical Specifications Summary

1. Performance & Capacity

• Nominal Load Capacity: 1,500 kg (3,000 lbs / 1.5 tons) at a 500 mm load center

• Max Lift Height (Standard Simplex Mast): 3.3 m (3,300 mm) standard; configurable up to 7.0 m with triplex options

• Travel Speed (Loaded / Unloaded): 16 km/h / 16 km/h

• Lift Speed (Loaded / Unloaded): 0.40 m/s / 0.55 m/s

• Lowering Speed (Loaded): 0.55 m/s

2. Powertrain & Electrical System

• Power Source: 48 V Electric Powertrain

• Drive System: ZF Dual Drive Motor System (10.8 kW traction power)

• Hoist Motor: 14.9 kW

• Battery Capacity: 48V / 510 Ah (Lead-Acid)

• Li-Ion Compatibility: Ready for fast opportunity-charging Lithium-Ion conversion with no controller modifications required.

• Control Unit: ZAPI ACE Dual MiCOM Controller (IP65 rated)

3. Dimensions & Weight

• Overall Length (to Face of Forks): 1,990 mm (~78.35 in)

• Overall Width: 1,074 mm (~42.28 in)

• Height (Overhead Guard / Closed Mast): 2,065 mm

• Turning Radius (Minimum): 1,540 mm (Allows easy 90-degree stack/turning in narrow aisles)

• Fork Dimensions (H × W × L): 40 mm × 110 mm × 1,050 mm (1.6 in × 4.35 in × 41.3 in)

• Unladen Service Weight: Approx. 3,120 kg (including ~780 kg battery)

4. Chassis & Features

• Tire Type: Superelastic (SE) Solid Rubber Tyres (Front 2x / Rear 1x layout)

• Steering System: Speed-adaptive Electronic Power Steering (EPS)

• Work Modes: 3 Selectable Modes — High, Normal, and Economy

• Safety Features: Curve Control (auto-slows on turns), Anti-Rollback System, Operator Presence Sensing System (OPSS), and Wet Disc Brakes.
