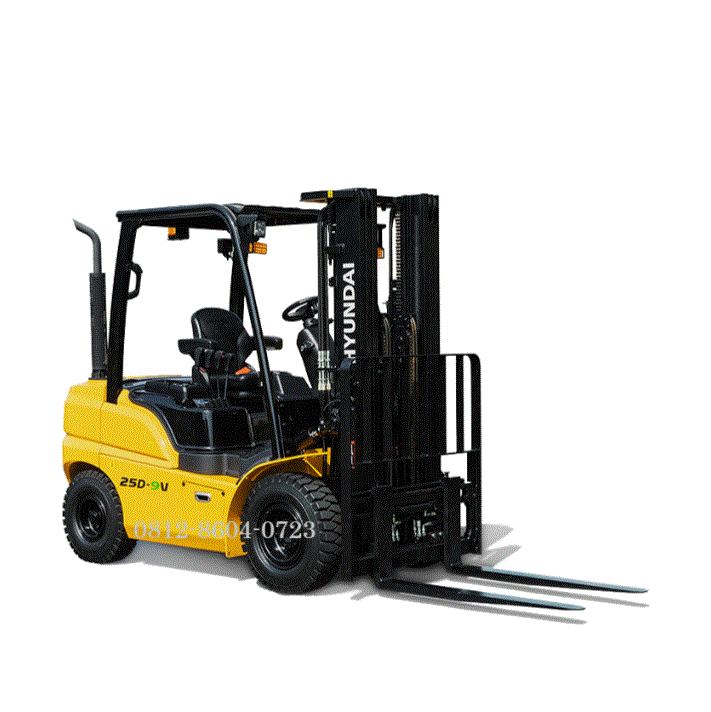

Hyundai Forklift 25D-9V | 2.5 ton

Description

Hyundai Forklift 25D-9V | 2.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned Hyundai Forklift 25D-9V | 2.5 ton

Key Technical Specifications

General Identification

• Model: 25D-9V

• Power Type: Diesel

• Operator Type: Seated counterbalanced

• Rated Capacity: 2,500 kg (5,500 lbs)

• Load Center Distance: 500 mm (20 in)

Engine & Powertrain

• Engine Manufacturer / Model: Hyundai DM02VB / HMC D4BB / Hyundai D4CC (varies by market & emission tier; Stage V / Tier 4 Final compliant models typically feature the Hyundai D24 or DM02 series)

• Engine Output: Approx. 36.8 kW – 48 kW (50 – 64 hp) @ 2,300 RPM

• Displacement: ~2.4 L

• Number of Cylinders: 4 in-line

• Fuel Tank Capacity: 60 Liters (15.8 gallons)

• Transmission Type: Full automatic powershift (1 forward / 1 reverse or 2 forward / 2 reverse)

Operating Performance

• Travel Speed (Loaded / Unloaded): ~19.0 / 20.0 km/h (11.8 / 12.4 mph)

• Lifting Speed (Loaded / Unloaded): ~550 mm/s / 600 mm/s

• Lowering Speed (Loaded / Unloaded): ~500 mm/s / 450 mm/s

• Drawbar Pull (Loaded): Approx. 21,000 N to 24,000 N

• Max. Gradeability (Loaded): 25% – 30%

Dimensions & Weight

• Operating Weight (Standard): ~3,950 kg – 4,100 kg

• Overall Length (to Face of Forks): 2,630 mm

• Overall Width: 1,160 mm

• Overhead Guard Height: ~2,160 mm

• Standard Lift Height: 3,300 mm (Duplex mast standard; Triplex options available up to 7,000 mm)

• Free Lift Height (Standard Mast): ~155 mm

• Fork Dimensions (L × W × T): 1,070 mm × 122 mm × 40 mm

• Wheelbase: 1,650 mm

• Ground Clearance: 130 mm (at lowest point under mast)

• Turning Radius (Outer): 2,320 mm

Wheels, Tires & Brakes

• Tire Type: Pneumatic (Solids optional)

• Tires Front (Size): 7.00-12-12PR

• Tires Rear (Size): 6.00-9-10PR

• Service Brakes: Wet multi-disc brakes (oil-cooled for extended lifespan)

• Parking Brake: Hand-lever operated / Mechanical

Standard Safety & Operator Comfort Features

• OPSS (Operator Presence Sensing System): Restricts lifting, lowering, and tilting movements when the operator leaves the seat.

• Full-Color Digital LCD Cluster: Provides real-time machine diagnostics, engine maintenance intervals, speed readouts, and tilt angle indicators.

• Hydraulic Control: Available with traditional mechanical levers or fingertip mini-levers with an integrated armrest.

• Ergonomics: Grammer full-suspension seat, adjustable steering column, and low-noise/vibration isolation mounts.
