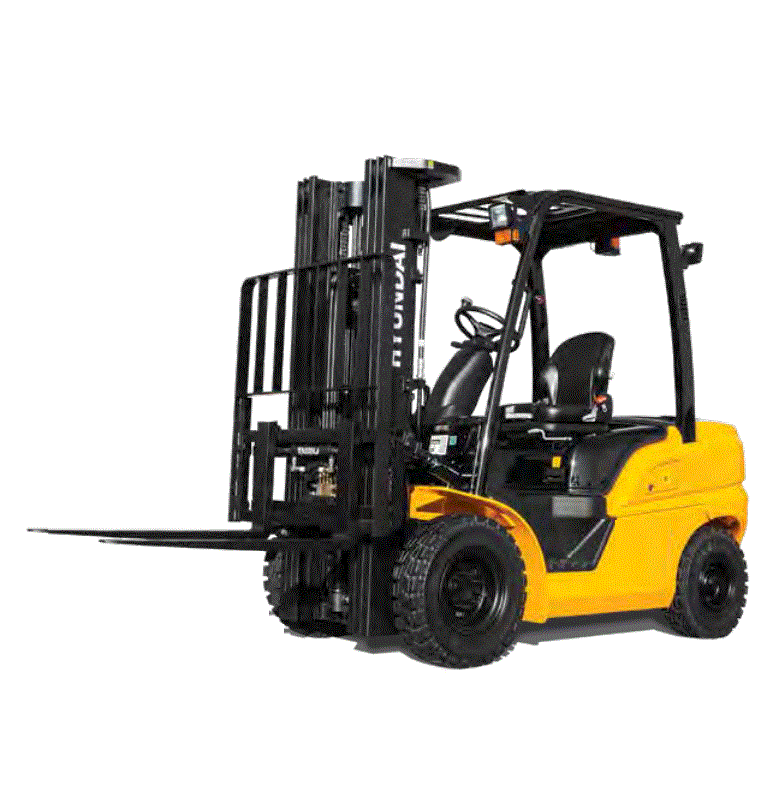

Hyundai Forklift 30D-9V | 3 ton

Description

Hyundai Forklift 30D-9V | 3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned Hyundai Forklift 30D-9V | 3 ton

Technical Specifications Summary

1. General Performance & Capacity

• Rated Capacity: 3,000 kg (3.0 Ton / 6,000 lbs)

• Load Center Distance: 500 mm

• Operating Weight: ~4,300 kg (4.3 tons)

• Travel Speed (Loaded / Unloaded): Up to 17 km/h

• Gradeability (Loaded): Up to 34% max

• Turning Radius: 2,420 mm (2.42 m)

2. Engine & Drivetrain

• Engine Model: Hyundai HMC D4HB

• Fuel Type: Diesel

• Displacement: 2.2 Liters (2,199 cc)

• Rated Output: 48 kW (64.3 HP) @ 2,300 RPM

• Max Torque: ~241 Nm @ 1,600 RPM

• Emissions Standard: EU Stage V compliant

• Number of Cylinders: 4

3. Standard Dimensions & Lifting

• Standard Lift Height (Simplex Mast): 3,300 mm (3.3 m / ~10.8 ft)

• Overall Width: 1,230 mm

• Overhead Guard Height / Construction Height: ~2,190 mm

• Lift Speed (Loaded / Unloaded): 0.58 m/s / 0.61 m/s

• Lowering Speed (Loaded / Unloaded): 0.55 m/s / 0.50 m/s

4. Tires & Wheels

• Tire Type: Pneumatic (Optional Solid/Superelastic available)

• Wheel Configuration: 2 Front / 2 Rear

Key Features & Enhancements

• Upgraded Cooling System: Heavy-duty radiator with +13% increased core volume for high ambient temperature resilience.

• Operator Environment: Ergonomic cabin design with reduced interior noise levels, adjustable suspension seat, and clear LCD display panel.

• Safety Systems: Includes Operator Presence Sensing System (OPSS), automatic parking brake features, and optional rear-view safety cameras.
