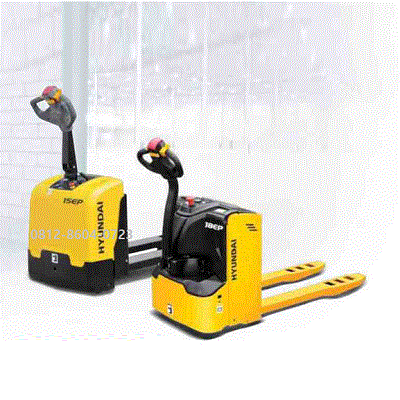

Hyundai Pallet Mover 15EP | 1.5 ton

Description

Hyundai Pallet Mover 15EP | 1.5 ton

The Hyundai 15EP is a compact, pedestrian-operated (walkie) electric pallet truck designed for light-to-medium duty warehouse tasks, retail environments, and vehicle loading.
It is well-regarded for its maneuverability in tight aisles and its maintenance-free brushless motor.
Below are the technical specifications for the unit:

Core Performance

Load Capacity: 1,500 kg.
Load Center: 600 mm.
Travel Speed (Laden/Unladen): 5.8 / 6.0 km/h.
Lifting Speed (Laden/Unladen): 0.035 / 0.045 m/s.
Turning Radius: 1,347 mm.
Aisle Width (1000×1200 pallet crosswise): 1,725 mm.

Technical Dimensions

Overall Length 1,525 mm.
Overall Width 685 mm.
Fork Dimensions (Standard) 53 x 160 x 1,150 mm.
Lowered Fork Height 75 mm / 85 mm.
Max Lift Height 115 mm.
Wheelbase 1,152 mm.
Service Weight (with battery) ~230 kg.

Power & Drive System

Drive Motor: 0.9 kW (DC Brushless).
Lift Motor: 0.8 kW.
Battery Voltage/Capacity: 24V / 80Ah.
Battery Weight: 49 kg.
Braking System: Electromagnetic / Regenerative.
Tires: Polyurethane (Front: 195 x 70 / Rear: 80 x 70)

Key Features

Ergonomics: Equipped with a long tiller arm to reduce steering effort and keep the operator at a safe distance from the unit.
Safety: Includes a “Turtle Mode” switch for precise movement in confined spaces with the tiller in the upright position.
Serviceability: Uses CANbus technology to simplify wiring and features a one-piece cover for quick access to internal components.
Stability: Spring-loaded castor wheels help maintain lateral stability on uneven floors.
Note: There is a newer variant, the 15EP-XB, which often features Lithium-Ion technology and a slightly higher drive motor rating (1.3 kW). If your unit is the newer Li-Ion version, the battery will be significantly lighter (approx. 8 kg).
