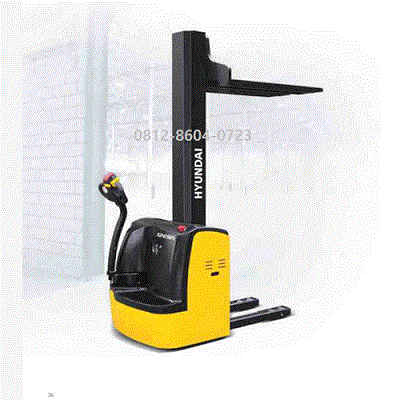

Hyundai Pallet Stacker 12ESN | 1.2 ton

Description

Hyundai Pallet Stacker 12ESN | 1.2 ton

The Hyundai 12ESN is a heavy-duty electric walkie pallet stacker designed for narrow-aisle efficiency and precision.
With a 1.2-ton (1,200 kg) capacity, it is frequently used for short-distance transport and light-to-medium stacking in warehouses or retail environments.
Below are the detailed specifications for the unit:

Performance & Capacity

Nominal Load Capacity: 1,200 kg (1.2 tons).
Load Center: 500 mm / 600 mm (depending on configuration).
Lifting Height: Typically ranges from 1,600 mm to 3,500 mm (Standard Simplex mast is approx. 1,950 mm).
Travel Speed (Laden/Unladen): 5.3 / 6.0 km/h.
Lifting Speed (Laden/Unladen): 0.11 / 0.19 m/s.
Gradeability (Laden/Unladen): 8% / 15%.

Electrical System

Drive Motor: 1.2 kW (AC Technology).
Lifting Motor: 2.2 kW.
Battery Voltage/Capacity: 24V / 80Ah (standard Lead-Acid or Li-ion options available).
Controller: Curtis AC Controller (provides smooth, proportional speed control).

Dimensions & Weight

Overall Length: ~1,780 mm.
Overall Width: ~820 mm.
Turning Radius: 1,338 mm (excellent for tight spaces).
Fork Dimensions: 54 x 160 x 1,150 mm (standard).
Service Weight (with battery): Approx. 590 kg to 650 kg.

Key Features

AC Drive System: Brushless motor for lower maintenance and higher efficiency.
Turtle Mode Switch: Allows the operator to maneuver safely with the tiller in the upright position.
Safety Features: Includes an anti-roll-back system on gradients, a belly-button emergency reverse switch, and automatic speed reduction during turns.
Maneuverability: Equipped with spring-loaded castor wheels for improved lateral stability on uneven floors.
