Hyundai Pallet Stacker 15ES | 1.5 ton

Description

Hyundai Pallet Stacker 15ES | 1.5 ton

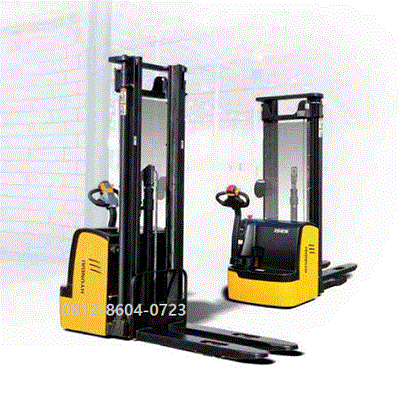

The Hyundai 15ERSP is a 1.5-ton electric ride-on pallet stacker designed for high-intensity warehouse operations.
It is particularly well-suited for transporting and stacking heavy loads over medium to long distances thanks to its foldable platform and side guards.
Below are the key technical specifications and performance data:

Core Specifications

Model 15ERSP.
Operator Type Stand-on (Ride-on).
Load Capacity 1,500 kg (1.5 Ton).
Load Center 500 mm / 600 mm (Standard).
Battery Voltage/Capacity 24V / 210Ah – 300Ah (Lead-acid or Li-ion options).
Driving Motor Power 1.5 kW (AC).
Lifting Motor Power 3.2 kW.

Performance & Dimensions

Lift Height: Standard mast offers around 3,000 mm, though triplex mast options can reach up to 5,600 mm.
Travel Speed: Approximately 8.5 km/h (laden) to 9.0 km/h (unladen).
Turning Radius: Roughly 1,655 mm – 1,690 mm, making it agile in narrow aisles.
Forks: Standard dimensions are typically 570 mm x 1,150 mm.
Braking: Features an advanced electromagnetic braking system with regenerative braking to maximize battery life.

Key Features & Benefits

Ergonomics: Equipped with a foldable operator platform and protective side arms for comfort during long shifts.
Precision Control: Uses a high-quality Curtis Controller for smooth acceleration and precise lift/lower operations.
Safety: Includes an emergency reverse “belly button,” automatic speed reduction when forks are elevated, and an anti-rollback system for slopes.
Serviceability: Designed with CANbus technology to reduce wiring complexity and a removable front cover for easy access to the motor and hydraulics.
Note: Performance data such as lifting height can vary significantly based on the specific mast configuration (Simplex, Duplex, or Triplex) chosen for your unit.
