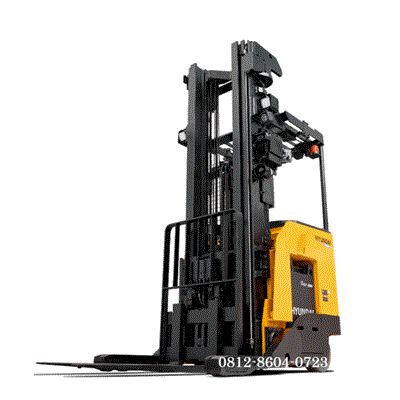

Hyundai Reach Truck 20BRP-X | 2 ton

Description

Hyundai Reach Truck 20BRP-X | 2 ton

The Hyundai 20BRP-X (and its predecessor the 20BRP-9) is a high-performance, stand-up electric reach truck designed for narrow-aisle warehouse operations. While often categorized in the “2-ton” class, its precise rated capacity is typically 1.8 tons (1,814 kg) at a standard load center.
Below are the primary specifications for the 20BRP-X unit:

Performance & Capacity

Rated Load Capacity: 1,814 kg (approx. 4,000 lbs).
Load Center: 610 mm (24 in).
Max Lift Height: Standard masts often reach 5,335 mm, though Triplex options can exceed 9,000 mm depending on the specific mast configuration.
Travel Speed (Loaded/Unloaded): 11.8 km/h / 11.8 km/h.
Lift Speed (Loaded): 0.29 m/s.
Lowering Speed (Loaded): 0.50 m/s.

Electrical System & Motors

Voltage: 36V (Standard) or 48V (Model dependent/Options).
Battery Type: Lead-Acid (Standard) or Lithium-Ion (Option).
Battery Capacity: Typically 700 Ah – 930 Ah.
Drive Motor (AC): 6.8 kW.
Hydraulic Pump Motor (AC): 16 kW.
Controller: High-efficiency ZAPI AC Controller.

Dimensions & Chassis

Turning Radius: 1,712 mm (standard battery compartment).
Overall Width: 1,067 mm (standard).
Length to Fork Face: ~1,332 mm to 1,376 mm (varies by battery compartment type).
Reach Stroke (Pantograph): 592 mm.
Ground Clearance: 51 mm (at load wheels).
Tires: Polyurethane (Load/Drive/Caster)

Key Features

Pantograph Reach: Designed for double-deep racking or extended reach in narrow aisles.
Electric Power Steering: Reduces operator fatigue and allows for precise maneuvering in tight spaces.
Safety Systems: Includes an automatic parking brake (electric release), curve control (speed reduction during turns), and an emergency power disconnect.
Operator Comfort: Features a cushioned backrest, non-slip floor mat, and a multi-function LCD monitor for real-time diagnostics.
Note: Performance data and lift heights can vary based on the specific mast type installed (e.g., 2-stage vs. 3-stage Triplex). Always refer to the specific load chart attached to your unit for safe operation at height.
