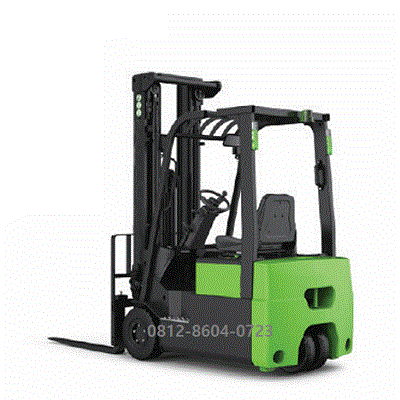

The iMOW CPD15 (specifically the popular CPD15L1 series manufactured by EP Equipment) is a 1.5-ton electric counterbalance forklift engineered natively around Lithium-Ion technology.

The technical specifications and unit details for this model include:

Key Performance & Capacity

• Rated Load Capacity: 1,500 kg (1.5 tons)

• Load Center Distance: 500 mm

• Standard Lift Height: 3,000 mm (3 meters)

• Max. Travel Speed (Laden/Unladen): 10.5 / 14 km/h

• Lifting Speed (Laden/Unladen): 0.3 / 0.42 m/s

• Lowering Speed (Laden/Unladen): 0.42 / 0.45 m/s

• Max. Gradeability (Laden/Unladen): 10.5% / 14%

Dimensions & Weight

• Service Weight (Including Battery): 2,640 kg

• Overall Length (Without Forks): 2,200 mm

• Overall Width: 1,080 mm

• Height of Overhead Guard: 2,080 mm

• Standard Fork Dimensions: 40 mm x 100 mm x 1,070 mm

• Wheelbase: 1,470 mm

• Turning Radius: 2,080 mm

• Right Angle Aisle Width (Pallet 1000×1200 crossways): 3,685 mm

Battery & Chassis

• Power Type: Electric (Lithium-ion)

• Battery Voltage / Nominal Capacity: 48V / 360Ah

• Battery Weight: 260 kg

• Drive Motor Rating (S2 60 min): 6.0 kW (AC)

• Lift Motor Rating (at S3 15%): 7.5 kW

• Tyre Type: Solid Rubber

• Front Tyres: 18X7-8

• Rear Tyres: 5.00-8

Main Design Features

• IPX4 Waterproof Rating: Certified for all-weather outdoor operation, including working out in the rain.

• Ergonomic Wide Cabin: Built specifically on an electric chassis instead of a modified diesel frame, maximizing legroom and driver comfort.

• Fast Opportunity Charging: Fully charges in 2.5 hours, with opportunity charging allowing up to 7% juice in just 10 minutes.
