IMOW Forklift CQD15S | 1.5 ton
IMOW Forklift CQD15S | 1.5 ton
Unit Specifications
Identification Manufacturer EP Equipment (iMOW Series).
Model Designation CQD15S.
Operator Type Standing / Stand-on.
Load Capacity 1,500 kg.
Load Center 600 mm.
Weight Service Weight (incl. battery) 2,370 kg.
Wheels & Tires Tire Type Polyurethane (Non-marking).
Tire Size (Front) Φ260×105 mm.
Tire Size (Rear) Φ254×114 mm.
Description
IMOW Forklift CQD15S | 1.5 ton
BELIALAT.COM sales,unit, parts, service, rental, maintenance contact, overhaul, reconditioned, IMOW Forklift CQD15S | 1.5 ton

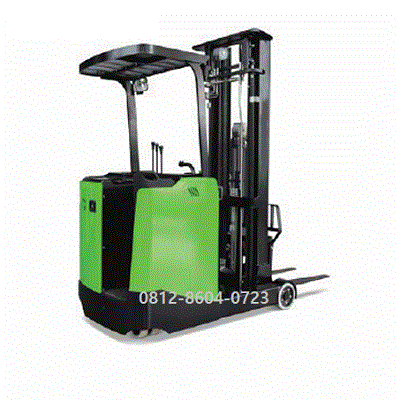

The iMOW CQD15S (by EP Equipment) is an electric, stand-up rider reach truck specifically engineered for high-density, narrow-aisle warehousing. It balances a compact footprint with heavy lifting stability thanks to its non-floating drive system.
Core Specifications
Identification Manufacturer EP Equipment (iMOW Series).
Model Designation CQD15S.
Operator Type Standing / Stand-on.
Load Capacity 1,500 kg.
Load Center 600 mm.
Weight Service Weight (incl. battery) 2,370 kg.
Wheels & Tires Tire Type Polyurethane (Non-marking).
Tire Size (Front) Φ260×105 mm.
Tire Size (Rear) Φ254×114 mm.
Dimensions & Maneuverability
Standard Lift Height (h3) 3,000 mm (Options available up to 7,500 mm).
Mast Extended Height (h4) 3,860 mm (For standard 3m mast, without backrest).
Height of Overhead Guard 2,255 mm.
Overall Length 2,335 mm.
Length to Face of Forks (l2) 1,265 mm.
Overall Width 1,090 mm.
Fork Dimensions (s/e/l) 40×100×1,070 mm.
Moving-Mast Reach Distance (l4) 665 mm (with sideshift)
Turning Radius (Wa) 1,765 mm.
Min. Aisle Width (Pallet 1000×1200 cross) 2,745 mm.
Performance & Drive
Travel Speed (Laden / Unladen) 8.5 km/h / 9.0 km/h.
Lifting Speed (Laden / Unladen) 0.28 m/s / 0.44 m/s.
Lowering Speed (Laden / Unladen) 0.52 m/s / 0.48 m/s.
Max. Gradeability (Laden / Unladen) 8% / 10%.
Service & Parking Brake Electromagnetic.
Steering Design Electronic Power Steering (EPS).
Electrical System
Drive Motor Rating (S2 60 min): 4.0 kW (AC Motor).
Lift Motor Rating (at S3 15%): 8.2 kW.
Battery Voltage: 48V.
Battery Capacity: 420 Ah standard (Configurable options include Lead-Acid on a lateral roller bed or Next-Gen Lithium-Ion configurations for opportunity charging).
Drive Control Type: ZAPI AC Controller
Key Design Highlights: The unit features a fixed, non-floating drive system to ensure rigid stability when handling heavy loads up to its maximum 7.5-meter limit. Its precise electric power steering handles tight spaces intuitively while creating a dampened feel to combat driver fatigue.
