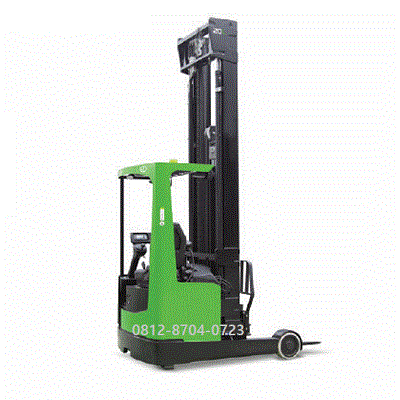

IMOW Forklift CQD20LB | 2 ton

Description

IMOW Forklift CQD20LB | 2 ton

BELIALAT.COM sales,unit, parts, service, rental, maintenance contact, overhaul, reconditioned, IMOW Forklift CQD20RV | 2 ton

The IMOW (EP Equipment) CQD20LB is an economic, electric Lithium-ion reach truck featuring a 2.0-ton (2000 kg) load capacity. It is engineered primarily for indoor warehouse environments with medium-to-high racking systems.

The standard unit specifications for the 2-ton model include:

Performance & Capacity

• Load Capacity: 2000 kg (2.0 tons)

• Load Center Distance: 600 mm

• Maximum Lift Height: 9500 mm (9.5 meters)

• Full Capacity Elevation: Maintains full nominal capacity up to 6.5 meters

• Maximum Reach Distance: 610 mm

• Travel Speed (Laden/Unladen): 9 / 9.5 km/h

• Lifting Speed (Laden/Unladen): 0.45 / 0.55 m/s

• Lowering Speed (Laden/Unladen): 0.5 / 0.45 m/s

• Max Gradeability (Laden/Unladen): 10% / 15%

Battery & Electrical System

• Battery Type: Maintenance-free Lithium-ion (Li-ion)

• Battery Voltage/Nominal Capacity: 48V / 405Ah (Note: Varied regional configurations may offer 280Ah)

• Charger: External 48V charger supporting opportunity charging (fast charging during breaks)

Dimensions & Weight

• Service Weight (including battery): 3940 kg

• Overall Width: 1270 mm

• Length to Face of Forks: 1373 mm

• Fork Dimensions: 40 mm x 120 mm x 1070 mm

• Turning Radius: 1770 mm

• Ground Clearance: 70 mm

Operator Compartment & Features

• Steering: Electric power steering with damping

• Controls: Multi-functional joystick system and proportional lifting for exact load placement

• Display: Full-color LCD showing real-time diagnostics and battery levels

• Maintenance Design: Turnable seat compartment provides immediate side access to core internal parts
