IMOW Forklift CQD20RV | 2 ton

Description

IMOW Forklift CQD20RV | 2 ton

BELIALAT.COM sales,unit, parts, service, rental, maintenan contact, overhaul, reconditioned, IMOW Forklift CQD20RV | 2 ton

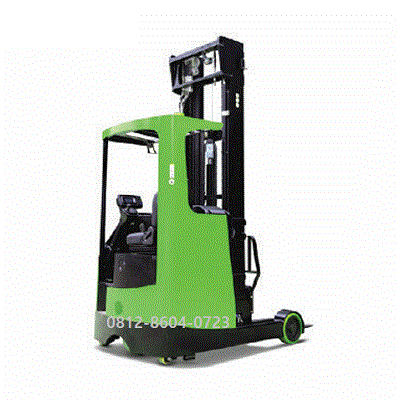

The iMOW CQD20RV (also classified under the upgraded CQD20RVF2 series by EP Equipment) is a high-performance, electric sit-down reach truck engineered specifically for high-density, narrow-aisle warehousing.

The core technical specifications for the 2-ton (2,000 kg) capacity model include:

Core Performance & Capacity

• Rated Load Capacity: 2,000 kg (2 tons)

• Load Center: 600 mm

• Maximum Lifting Height: Up to 12,000 mm (12 meters) depending on mast configuration

• Mast Options: 2-Stage or 3-Stage I-beam mast configurations with an optional integrated mechanical height indicator for precise rack leveling.

• Travel Speed (Laden/Unladen): ~9 to 14 km/h

• Drive System: Full AC motor drive with regenerative braking.

Dimensions & Maneuverability

• Overall Width: ~1,180 mm to 1,270 mm (designed for tight, narrow aisles)

• Wheelbase: 1,454 mm to 1,524 mm

• Turning Radius: ~2,100 mm

• Fork Dimensions: 40 mm x 120 mm x 1,070 mm (Standard)

• Service Weight (Including Battery): Approximately 3,500 kg to 3,750 kg

Electrical & Battery Systems

• System Voltage: 48V

• Battery Configurations: Available with either a long-lasting Lead-Acid battery (48V/500Ah) or advanced Lithium-ion technology (48V/405Ah).

• Power Steering: Full electric power steering (EPS) system that maximizes energy efficiency and extends operational shift hours compared to conventional hydraulic steering.

Key Features & Ergonomics

• Enhanced Visibility: Built with an offset oil tube layout and a compact design to drastically improve stacking sightlines and reduce blind spots.

• Full-Color LCD Display: Provides operators with real-time analytics including battery levels, speed metrics, and diagnostic error codes.

• Comfort & Safety: Features an ergonomic suspended operator seat, 6000K LED headlights for dark environments, and an upgraded hydraulic pump that reduces operating noise by up to 10 dB.
