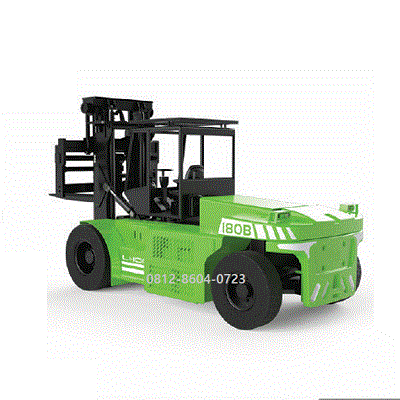

IMOW Forklift EFL1601B-HV | 16 ton

Description

IMOW Forklift EFL1601B-HV | 16 ton

BELIALAT.COM sales,unit, parts, service, rental, maintenance contact, overhaul, reconditioned, IMOW Forklift EFL1801B-HV | 18 ton

The IMOW / EP Equipment EFL1601B-HV (also closely aligned with the EFL1603-HV series) is a heavy-duty, high-voltage Lithium-ion electric counterbalanced forklift designed to handle massive loads in intense industrial environments.

The core technical and unit specifications for this 16-ton model include:

General Specifications

• Brand/Manufacturer: iMOW / EP Equipment

• Model: EFL1601B-HV (EFL1603-HV series)

• Power Type: Electric / High-Voltage Lithium-ion (Li-ion)

• Rated Capacity: 16,000 kg (16 Tons)

• Load Center: Usually 600 mm or 900 mm depending on fork class configuration

Battery & Power System

• Battery Type: Li-ion (LFP – Lithium Iron Phosphate)

• Battery Voltage / Rated Capacity: 614.4V / 230Ah (or 618V / 228Ah depending on regional market variance)

• Drive Motor: High-power AC system (approx. 90 kW drive motor)

• Charger Options: Supports high-speed, 3-phase external fast chargers (typically ranging from 20 kW up to 80 kW configurations)

• Additional Feature: Built-in battery heating function to safely optimize charging in cold weather conditions

Performance

• Maximum Travel Speed: Up to 20 km/h (unladen/laden variants)

• Maximum Gradeability / Slope: Up to 20% – 30%

• Turning Radius: Approx. 5,175 mm (outer turning radius)

• Control System: Advanced AC controller with proportional hydraulic controls and mast lifting/lowering buffer mechanics.

Mast & Dimensions

• Standard Lift Heights: 3,500 mm to 5,000 mm (Standard wide-view duplex mast typically set around 4,500 mm)

• Tyres: Large heavy-duty pneumatic yard tyres or solid rubber tyres depending on the chosen setup.

• Cabin Equipment: All-weather enclosed operator cabin equipped with integrated air conditioning, heater, defrost/defogging functions, electro-hydraulic tilting, and an ergonomic suspension seat (e.g., Grammer) with Operator Presence Sensing (OPS).

Safety & Tech Integration

• Telematics: Standard GPS/Fleet management data tracking.

• Operator Protection: Operator Presence Sensing (OPS) system that cuts off hydraulic and driving power when the driver leaves the seat.

• Visibility Package: Premium LED package (front/rear working lights, mast lights, tricolor taillights, strobe warning lights), back distance sensors, and a rear-facing camera connected to an LCD display inside the cabin.
