IMOW Forklift EFL1801B-HV | 18 ton

Description

IMOW Forklift EFL1801B-HV | 18 ton

BELIALAT.COM sales,unit, parts, service, rental, maintenance contact, overhaul, reconditioned, IMOW Forklift EFL1801B-HV | 18 ton

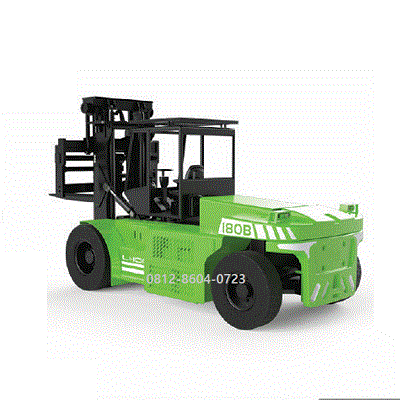

The IMOW EFL181 (often categorized under its parent manufacturer, EP Equipment, and sometimes referred to with suffix variations like EFL1801B-HV) is a compact, 4-wheel lithium-ion electric forklift.

Please note that its lifting capacity is 1.8 tons (1,800 kg), rather than 18 tons. It is designed as a rugged, entry-level alternative to traditional diesel forklifts for light to medium-duty operations.

Key Technical Specifications

1. Performance & Capacity

• Load Capacity (Q): 1,800 kg (1.8 Tons)

• Load Center (c): 500 mm

• Travel Speed (Laden/Unladen): 8.5 / 9.0 km/h

• Lifting Speed (Laden/Unladen): 0.25 / 0.30 m/s

• Lowering Speed (Laden/Unladen): 0.43 / 0.45 m/s

• Maximum Gradeability (Laden/Unladen): 10.5% / 15%

2. Dimensions & Weight

• Service Weight (including battery): 3,030 kg

• Overall Length (to face of forks – $l_2$): 2,015 mm

• Overall Width ($b_1/b_2$): 1,080 mm

• Turning Radius ($W_a$): 1,920 mm

• Standard Mast Lifting Height ($h_3$): 3,000 mm (Duplex/Triplex mast options can extend up to 4,800 mm)

• Retracted Mast Height ($h_1$): 1,995 mm

• Ground Clearance (Below Mast / Center of Wheelbase): 115 mm / 120 mm

• Standard Fork Dimensions ($s/e/l$): 40 x 100 x 920 mm

3. Electrical & Drive System

• Drive Type: Electric (AC Motor Control)

• Drive Motor Rating (S2 60 min): 6.0 kW

• Lift Motor Rating (S3 15%): 7.5 kW

• Battery Type: Lithium-Ion (Li-ion)

• Battery Voltage / Nominal Capacity: 48V / 150Ah (Optional upgraded configuration: 48V / 205Ah)

• Charger: Integrated On-Board Charger (Single-phase, plugs into a standard electrical outlet; full charge in ~2.5 to 3 hours).

4. Wheels & Chassis

• Tyre Type: Solid Rubber (Pneumatic or Non-marking options available)

• Tyre Size (Front / Rear): 6.5-10 / 5.00-8

• Brake System: Hydraulic Service Brake / Mechanical Parking Brake

Main Features & Advantages

• IC-Style Chassis Architecture: Built on a rugged, market-tested internal combustion (diesel-style) chassis template, offering high ground clearance and large front tires to easily navigate uneven surfaces, gravel yards, and outdoor environments.

• Plug & Play Charging: Features a built-in charger requiring no complex three-phase infrastructure. It supports opportunity charging, allowing operators to plug it into standard wall outlets during breaks without damaging battery life.

• Zero Maintenance: The 48V lithium power plant eliminates engine oil changes, air filters, and traditional lead-acid battery watering tasks.
