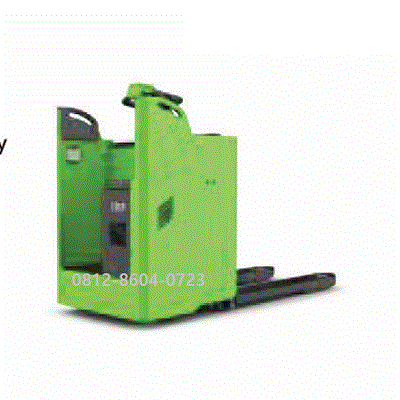

IMOW Pallet Mover EPT20SR | 2 ton

Description

IMOW Pallet Mover EPT20SR | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Mover EPT20SR | 2 ton

The iMOW / EP EPT20-SR is a heavy-duty, 2.0-ton (2000 kg) ride-on electric pallet mover designed for high-efficiency warehouse operations. It features a versatile 3-in-1 operator setup supporting sit-on, stand-on, or lean-on modes, optimized for high travel speeds over medium to long distances.

Key Technical Specifications

Performance & Capacity

• Nominal Load Capacity: 2,000 kg (2.0 Ton)

• Operator Type: Ride-On (Sit-on / Stand-on / Lean-on)

• Travel Speed (Laden / Unladen): Up to 10.5 km/h / 14.0 km/h

• Load Center Distance: 600 mm

Dimensions & Lift

• Lift Height: 120 mm

• Fork Dimensions (H × W × L): 55 mm × 170 mm × 1,150 mm (Standard)

• Wheelbase: 1,568 mm

Electrical System & Powertrain

• System Voltage: 24 V

• Battery Technology: Fully optimized for Lithium-Ion (Li-Ion)

• Drive System: Heavy-duty AC traction motor

Weight & Axle Load

• Service Weight: ~525 kg

• Axle Load (Laden): 860 kg (Front) / 1,650 kg (Rear)
