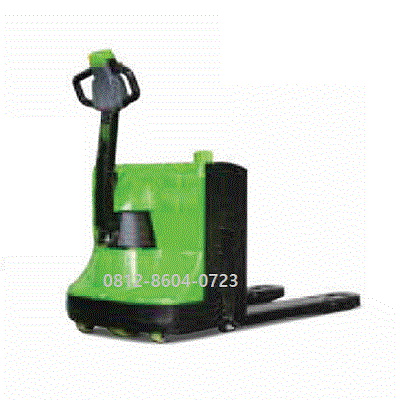

IMOW Pallet Mover EPT25WA | 2.5 ton

Description

IMOW Pallet Mover EPT25WA | 2.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Mover EPT25WA | 2.5 ton

The IMOW EPT25-WA (2.5 Ton) is a heavy-duty, pedestrian electric pallet truck designed for short-distance load transport in warehouse environments, loading bays, and logistics operations.

Key Technical Specifications

General Performance & Capacity

• Load Capacity: 2,500 kg (2.5 Ton)

• Operator Type: Pedestrian (walkie)

• Load Center Distance: 600 mm

• Lift Height: 120 mm

• Travel Speed (Laden / Unladen): 5.0 / 5.5 km/h

• Max Gradeability (Laden / Unladen): 8% / 16%

Dimensions & Weight

• Overall Dimensions (L × W × H): 1,748 × 710 × 1,200 mm

• Standard Fork Dimensions (s × e × l): 55 × 170 × 1,150 mm

• Service Weight:

  • Li-ion Version: ~400 kg

  • Lead-Acid Version: ~565 kg

Drive & Electrical Systems

• Drive Type: Electric (AC Traction Motor)

• Drive Motor Rating: 1.1 kW

• Battery Voltage / Nominal Capacity:

  • Li-ion Variant: 24V / 205Ah

• Certification: CE Certified

Key Features

• AC Drive System: Vertical AC motor with an integrated gearbox provides consistent power and low maintenance requirement.

• Enhanced Safety: Equipped with an emergency reverse belly-button switch, electromagnetic anti-roll back brake, and emergency power disconnector.

• High Maneuverability: Long tiller arm with over 180° rotation angle and automatic speed reduction when the tiller approaches the upright position.
