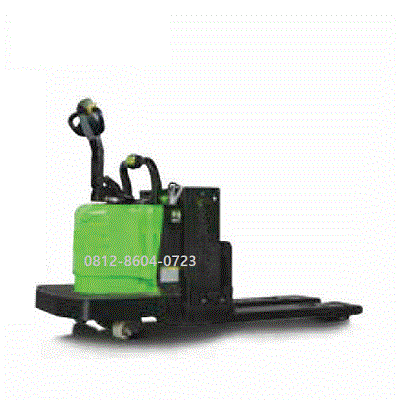

IMOW Pallet Mover EPT30RTS | 3 ton

Description

IMOW Pallet Mover EPT30RTS | 3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Mover EPT30RTS | 3 ton

Here are the key technical specifications for the IMOW / EP EPT30RTS (3-ton stand-on ride-on electric pallet truck):

General Specifications

• Model: EPT30RTS / EPT20-30RTS

• Operator Type: Stand-on Rider (with platform & safety arms)

• Load Capacity: 3.0 Ton (3,000 kg)

• Load Center Distance: 600 mm

Performance & Drive

• Travel Speed (Laden / Unladen): Up to 10.5 km/h / 12.0 km/h

• Lifting Speed: ~0.03 m/s

• Gradeability (Laden / Unladen): Max 8% – 16%

• Drive Controller: AC Drive System (e.g., ZAPI / Curtis Controller)

• Steering: Electric Power Steering (EPS)

Dimensions & Weights

• Service Weight (with Battery): Approx. 810 kg – 850 kg

• Lifting Height: 140 mm – 200 mm

• Lowered Fork Height: 85 mm

• Overall Length: ~2,330 mm

• Overall Width: ~790 mm – 920 mm

• Fork Dimensions (Width × Length): Standard 685 mm × 1,190 mm / 1,200 mm

• Turning Radius: Approx. 2,180 mm

Electrical & Battery Options

• Drive Motor Rating: 3.3 kW AC

• Lift Motor Rating: 2.2 kW DC

• Power Supply Voltage: 24V

• Battery Capacity Options:

  • Lithium-ion: 24V / 205Ah

  • Lead-Acid: 24V / 280Ah – 360Ah

Key Features

• Foldable / Stand-on Platform: Reduces operator fatigue during long-distance transportation.

• Side Protective Arms: Ensures safety when traveling at higher speeds.

• Heavy-Duty Chassis: Built to handle intensive 3-ton warehouse and logistics applications.
