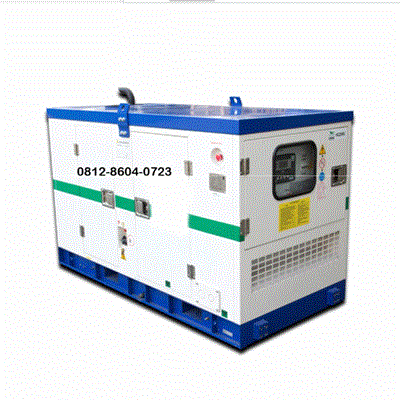

Kirloskar Genset KG15AS | 15 kVA

Description

Kirloskar Genset KG15AS | 15 kVA
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Kirloskar Genset KG15AS | 15 kVA

Specifications

Brand : Kirloskar
Model : Silent Type
Type : KG15AS
Cooler System : Aircooled

Generataor

Prime power output (PRP) kVA / kW : 15/12
Standby power output (ESP)  kVA/kW : 16.5/13.2

Fuel tank capacity – Open type Liters : 63
Fuel tank capacity – Silent type Liters : 63

Fuel consumption * PRP L/Hr 75% / 100% : 3.2/4.3
Sound level at 7m silent dB(A) : 70

Dimension (LxWxH) – open type cm : 130 x 92 x 130
Dimension (LxWxH) – silent type cm : 172x105x143

Dry weight – Open (Net) kg : 650
Dry weight – Silent (Net) kg : 820

Engine

Make/Model : Kirloskar/HA294
Engine output prime power  hp : 20.5

Nomor of cylinder & configuration : 2 – inline
Bore x stroke mm : 100 x 120

Type : 4 Stroke

Displacement liters : 1.88
Aspiration : Natural

Starting system : 12 Volt
Governor : Mechanical

Lubricant oil sump capacity liters : 7
Coolant capacity liters : 10

Alternator

Make ( Brand )  : Standford
Model : PI044GI.

Type : Brushless
Number of bearing : Single.

Insulation class H
Temperature rise at ambient 40°  deg : H/125°.

Wires : 12
Ingress protection : IP23.

AVR Model : AS480
Excitation : Self excited
Voltage regulation % : +/-1%
