Komatsu Forklift FB15U | 1.5 ton

Description

Komatsu Forklift FB15U | 1.5 ton

ELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB15U | 1.5 ton

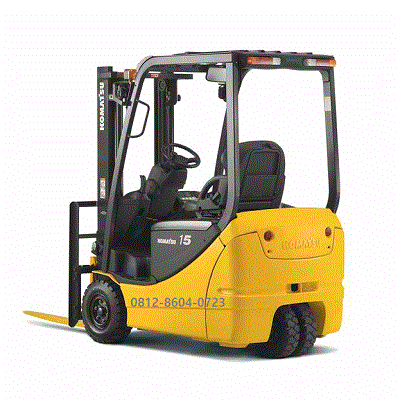

The Komatsu FB15U-12 (part of the AE50/AM50 electric series) is a highly reliable 1.5-ton electric counterbalanced forklift. Engineered for warehouse operations and narrow-aisle environments, it utilizes an advanced dual-drive AC power system to offer internal combustion-like power with zero emissions.

The full factory unit specifications for this model are listed below:

Performance & Capacity

• Nominal Load Capacity: 1,350 kg to 1,500 kg (3,000 lbs) at a 600 mm (24 in) load center.

• Maximum Travel Speed: 16.1 km/h (10.0 mph) loaded / 17.7 km/h (11.0 mph) unloaded.

• Lifting Speed (2-Stage Mast): 0.34 m/s (66.9 fpm) loaded / 0.60 m/s (118.1 fpm) unloaded.

• Lowering Speed: 0.45 m/s (88.6 fpm) loaded / 0.55 m/s (108.3 fpm) unloaded.

• Maximum Gradeability: 19% loaded.

Dimensions & Weight

• Overall Width: 1,110 mm (3.64 ft)

• Length (to fork face): 2,058 mm (6.75 ft) (Total length with standard forks is 3,129 mm).

• Construction/Mast Height (Lowered): 2,070 mm to 2,144 mm (6.8 ft to 7.0 ft)

• Standard Maximum Fork Height: 3,300 mm (10.83 ft)

• Turning Radius (Outside): 1,750 mm (5.74 ft)

• Right Angle Stacking Aisle Width: 3,160 mm to 3,358 mm

• Total Service Weight (with battery): 3,141 kg (6,910 lbs)

Electrical System & Powertrain

• System Voltage: 48V battery configuration.

• Traction Motor: Dual 9.0 kW AC independent drive motors (one for each front wheel).

• Hoist/Hydraulic Motor: 9.0 kW AC motor.

• Drive Control: High-efficiency AC Inverter system.

Chassis, Wheels & Braking

• Tires: Cushion solid or solid pneumatic options.

• Wheel Configuration: 4-wheel platform (2 front driven wheels, 2 rear steering wheels).

• Brake System: Hermetically sealed, airtight wet disc brakes (requires minimal maintenance and lasts up to 10,000 hours).

• Water Resistance: Built to IPX4 international water-resistant standards, allowing the machine to safely transition between indoor and outdoor wet environments.
