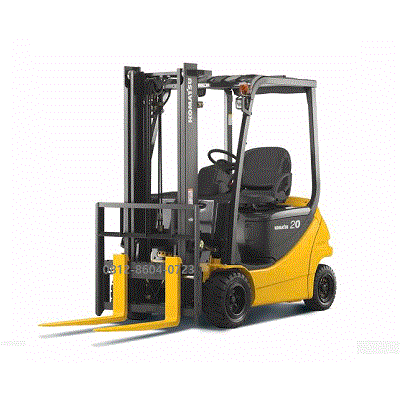

Komatsu Forklift FB18 | 1.8 ton

Description

Komatsu Forklift FB18 | 1.8 ton

ELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB18 | 1.8 ton

The Komatsu FB18 is a series of highly maneuverable electric counterbalance forklifts designed for efficient indoor and light outdoor operations. Key specifications across prominent model generations (such as the standard FB18-12 and the FB18M 3-wheel variants) are detailed below:

Performance & Load Specs

• Rated Load Capacity: 1,750 kg to 1,800 kg (approx. 1.8 tons / 3,968 lbs)

• Load Center: 500 mm (23.6 in)

• Standard Lift Height: 3.0 m to 3.33 m (depending on simplex/duplex mast choice, with full range masts available)

• Travel Speed: 14 to 15 km/h with load (up to 17 km/h without load)

Dimensions & Weight

• Operating Weight: ~3,150 kg to 3,170 kg (including standard battery pack)

• Total Overall Width: 1,110 mm (approx. 3.52 ft)

• Turning Radius: 1,785 mm for the 4-wheel FB18-12; a tighter 1,577 mm–1,590 mm for the 3-wheel variants (FB18M)

• Tyre Type: Puncture-proof / superelastic solid tyres

Electrical & Powertrain

• System Voltage: 48 V battery

• Traction Motor Power: 8 kW to 9 kW

• Hoist Motor Power: 9 kW

Key Operational Features

• Wet Application Resistance: Engineered to perform reliably in wet and corrosive environments.

• Advanced Safety Systems: Includes standard operator presence sensing (OPS) systems that automatically isolate travel and hydraulic lift operations when the operator leaves the seat.
