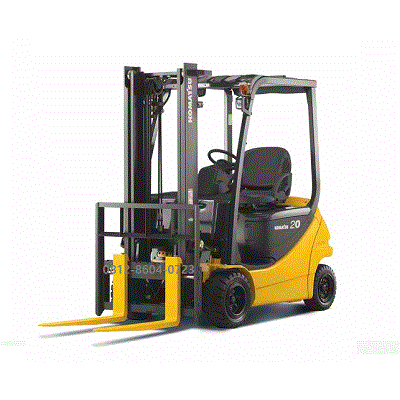

Komatsu Forklift FB20 | 2 ton

Description

Komatsu Forklift FB20 | 2 ton

BELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB20 | 2 ton

The Komatsu FB20 is a highly capable 2-ton (2,000 kg) electric counterbalance forklift built for indoor warehouse tasks and narrow-aisle environments. Depending on the exact generation/series (such as the popular FB20A-12 or older FB20-2 E), specifications may vary slightly, but the primary baseline metrics remain highly consistent.

Key Specifications

• Rated Capacity: 2,000 kg (2 tons) at a standard 500 mm load center

• Power Type: Electric battery system (typically 48V configuration on popular AE50/12-series variants)

• Operating Weight: Ranges between 3,230 kg to 4,200 kg (including standard battery pack)

• Standard Lift Height: 3,000 mm (3 meters) max fork lift height (up to 4.5 meters or more with optional 3-stage clearview masts)

• Turning Radius: Tight 1,750 mm to 1,850 mm outer turning radius for excellent maneuverability in confined spaces

Performance Data

• Travel Speed: Capable of reaching speeds between 15 to 17 km/h loaded or unloaded.

• Lifting Speed: 340 mm/s when fully loaded, and up to 600 mm/s when empty.

• Lowering Speed: 450 mm/s loaded and up to 550 mm/s unloaded.

• Drive Motor: Powered by efficient dual independent 4.5 kW AC drive motors (Total AC power system).

• Pump Motor: Robust 9.0 kW AC pump motor dedicated to fast and responsive hydraulic functionality.

• Gradeability: Maximum climbing grade of 14% to 19% while fully loaded.

Dimensions & Ergonomics

• Overall Width: Approximately 1,110 mm to 1,170 mm wide across the front tires.

• Overall Length (to Fork Face): Roughly 2,055 mm to 2,060 mm (excluding the length of the forks).

• Overhead Guard Height: Standard 2,070 mm to 2,098 mm clearance from the ground to the top roof line.

• Ground Clearance: Safe clearance of 95 mm under the mast and 125 mm at the center of the wheelbase.

Features & Safety systems

Modern variations like the AE50 series feature IPX4 international water-resistant certifications, making them resilient against occasional wet environments. They also employ airtight wet disc brakes to limit maintenance overhead, an ergonomic full-suspension operator seat, and Komatsu’s signature KOPS Plus lock lift/travel interlock system to prevent accidental mast movement when the operator is not seated.
