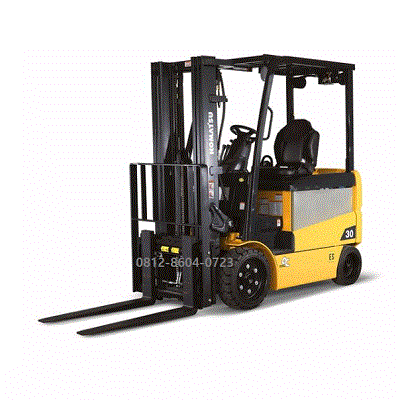

Komatsu Forklift FB20SHU | 2 ton

Description

Komatsu Forklift FB20SHU | 2 ton

BELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB20SHU | 2 ton

The Komatsu FB20SHU is a 4,000 lbs (2-ton) capacity electric rider forklift designed for indoor material handling. Below are the core technical specifications for this model.

Key Specifications

• Power Type: Electric (36 Volt or 48 Volt battery configuration)

• Operation Type: Sit-down rider

• Rated Capacity: 4,000 lbs (approx. 1,815 kg to 2,000 kg) at a 24-inch (600 mm) load center

• Operating / Service Weight: 8,930 lbs (approx. 4,050 kg)

• Tire Type: Cushion tires (Front: 21 x 7 x 15 in / Rear: 16 x 5 x 10.5 in)

Dimensions & Maneuverability

• Length to Fork Face: 80.5 inches (2,045 mm)

• Overall Width: 41.7 inches (1,060 mm)

• Wheelbase: 51.2 inches (1,300 mm)

• Turning Radius (Outside): 70.1 inches (1,780 mm)

• Right Angle Stacking Aisle: 87 inches (2,210 mm)

• Height to Top of Overhead Guard: 86.6 inches (2,200 mm)

• Ground Clearance: 4.1 inches (104 mm) at the center of the wheelbase; 5.5 inches (140 mm) under the mast.

Performance Specs

• Travel Speed (Loaded / Unloaded):

  • With 36V system: 8.7 mph / 9.3 mph (14.0 kph / 15.0 kph)

  • With 48V system: 10.6 mph / 10.9 mph (17.1 kph / 17.5 kph)

• Lifting Speed (Loaded / Unloaded):

  • With 36V system: 62.0 fpm / 106.3 fpm

  • With 48V system: 82.7 fpm / 126.0 fpm

• Lowering Speed (Loaded): 96.5 fpm

• Maximum Gradeability (Loaded): 25%

Battery Compartment Limits

• Dimensions (W x L x H): 38.8 x 29.1 x 23.8 inches (985 x 740 x 605 mm)

• Minimum Weight Required: 2,430 lbs (1,100 kg)

• Maximum Weight Allowed: 2,820 lbs (1,280 kg)
