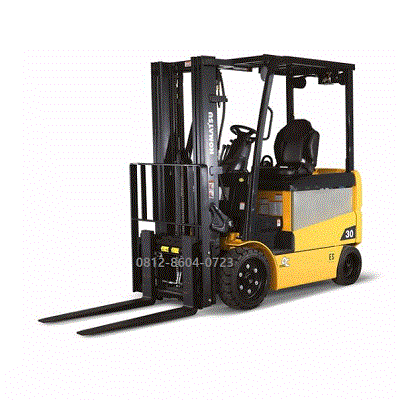

Komatsu Forklift FB30SHU | 3 ton ( Call : 08128604-0723 )

Description

BELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB30SHU | 3 ton

The Komatsu FB30SHU-6 is a 3-ton (6,000 lbs) capacity sit-down electric forklift designed primarily for high-productivity indoor operations.

Feature / Dimension	Specification Detail
Model	Komatsu FB30SHU-6
Power Type	Electric (Total AC power traction and hydraulic systems)
Electrical System	36V or 48V battery configurations
Rated Load Capacity	6,000 lbs (approx. 2,720 – 2,950 kg)
Load Center	24 inches (600 mm)
Operator Type	Sit-Down
Tire Type	Cushion tires (Optimized for smooth, indoor warehouse floors)
Operating Weight	10,680 lbs (4,845 kg)

Maximum Fork Height: Standard 128 inches (3,250 mm) maximum reach.
Travel Speed (Loaded): Up to 8.1 mph (13.0 kph) on 36V or 9.3 mph (15.0 kph) on 48V setups.
Lifting Speed (Loaded): 51.2 fpm (260 mm/s) on 36V or 70.9 fpm (360 mm/s) on 48V setups.
Turning Radius: 77 inches (1,956 mm) for tight-space maneuverability.
Right Angle Stacking Aisle: 94.5 inches (2,400 mm).
Overall Dimensions: 88.8 inches (2,257 mm) length to fork face, 43.3 inches (1,100 mm) overall width, and 87.8 inches (2,230 mm) height to top of the overhead guard.

Total AC Power System: High-efficiency AC motors eliminate carbon brushes, boosting run times while significantly reducing maintenance costs.
Advanced Safety Interlocks: Built with the KOPS PLUS Lift/Travel Interlock system, which restricts travel and hydraulic functions if the operator leaves the seat.
Ergonomics & Visibility: Equipped with an E Series EZ-View Mast for superior fork-tip visibility, alongside an adjustable tilt steering column.
