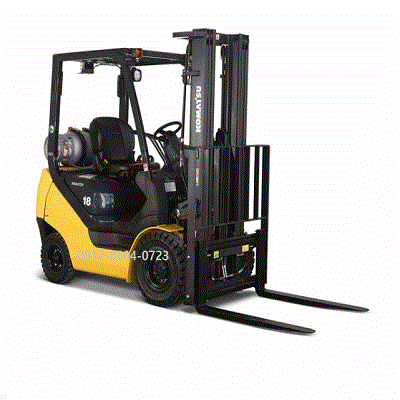

Komatsu Forklift FG15 | 1.5 ton
Komatsu Forklift FG15 | 1.5 ton
Unit Specifications
-
Rated Load Capacity: 1,500 kg (3,000 lbs) at a 500 mm (24 in) load center.
-
Power Type: Gasoline / LPG (Dual Fuel).
-
Operating Weight: Approx. 2,560 kg – 2,695 kg (5,640 lbs – 5,940 lbs) depending on the exact sub-series.
Description
Komatsu Forklift FG15 | 1.5 ton
ELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FG15 | 1.5 ton
The Komatsu FG15 is a reliable, compact 1.5-ton (3,000 lbs) internal combustion forklift widely used for material handling in warehouses and light industrial environments. It typically runs on Gasoline/LPG (Dual Fuel).
Key Specifications Overview
-
Rated Load Capacity: 1,500 kg (3,000 lbs) at a 500 mm (24 in) load center.
-
Power Type: Gasoline / LPG (Dual Fuel).
-
Operating Weight: Approx. 2,560 kg – 2,695 kg (5,640 lbs – 5,940 lbs) depending on the exact sub-series.
Detailed Dimensions & Performance
| Category | Specification Details |
| Lifting & Mast (Std 2-Stage) |
• Standard Lift Height: 3,000 mm (118 in) • Max Fork Height: Up to 3,250 mm (128 in) • Mast Height (Lowered): 2,170 mm (85.5 in) • Mast Height (Extended): 4,470 mm (176 in) |
| Physical Dimensions |
• Length to Fork Face: 2,225 mm (87.6 in) • Overall Width: 1,070 mm (42.1 in) • Height to Overhead Guard: 2,070 mm (81.5 in) • Standard Fork Size: 40 x 100 x 1,070 mm |
| Maneuverability |
• Outside Turning Radius: 1,955 mm (77 in) • Right Angle Stacking Aisle: Approx. 2,345 mm (92.4 in) without load length |
| Engine & Drivetrain |
• Common Engine Models: Nissan K21 / Nissan K15 / GCT GK21 • Engine Power: Approx. 36 kW – 40 kW (54 HP) • Fuel Tank Capacity: 40 Liters (10.6 US gal) • Transmission: Powershift / TORQFLOW or Manual Clutch |
| Speeds & Chassis |
• Max Travel Speed (Loaded): 18.5 km/h (11.5 mph) • Lifting Speed (Loaded): 580 – 590 mm/s • Tires: Pneumatic (Front: 6.50-10, Rear: 5.00-8) |
