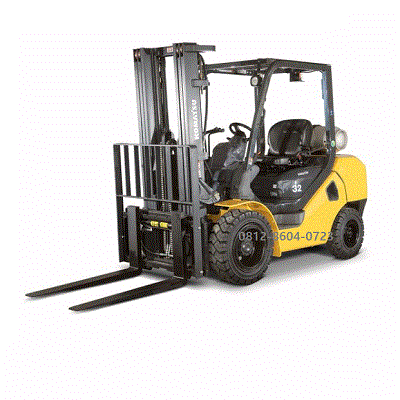

Komatsu Forklift FG20 | 2 ton

Description

Komatsu Forklift FG20 | 2 ton

ELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FG20 | 2 ton

The Komatsu FG20 is a highly reliable 2-ton internal combustion forklift primarily powered by LPG (Liquid Propane Gas) or Dual Fuel/Gasoline, widely recognized for its agile maneuverability and durable performance in warehouse and industrial applications.

Depending on the specific generation or model suffix (such as the standard pneumatic FG20T-16 or cushion tire FG20ST-16), the detailed technical specifications are outlined below:

Core Specifications

• Load Capacity: 2,000 kg (approx. 4,000 lbs) at a 600 mm (24-inch) load center

• Power Source: LPG / Gasoline (typically utilizing dependable Nissan/GCT K21 or H25 4-cylinder engines)

• Engine Power: Standard configurations offer 54 HP to 56 HP @ 2,700 rpm

• Maximum Torque: 111 to 118 lb-ft @ 1,600–2,000 rpm

• Transmission Type: Powershift / TORQFLOW torque converter (providing seamless forward/reverse transitions)

Mast & Performance

• Standard Lift Height: 3,000 mm to 3,250 mm (approx. 10.6 to 10.8 feet) with standard 2-stage duplex masts (up to 4.5m–6m options available depending on configuration)

• Lifting Speed: 120 feet per minute (fpm) when loaded

• Lowering Speed: 98 feet per minute (fpm)

• Travel Speed: Maximum speeds range between 10.6 mph to 11.2 mph (loaded)

• Gradeability: Up to 32% to 36% max gradeability, allowing it to handle inclines efficiently

Dimensions & Weights

• Operating / Service Weight: Approximately 3,220 kg to 3,297 kg (approx. 7,100 to 7,300 lbs)

• Length to Fork Face: 2,305 mm to 2,525 mm (90.7 to 99.4 inches) depending on tire layout

• Overall Width: 1,070 mm to 1,150 mm (42.1 to 45.3 inches)

• Turning Radius (Outside): Compact footprint requiring 2,190 mm (approx. 86.2 inches) for tight turns
