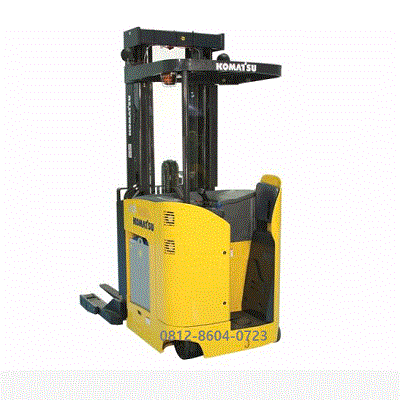

Komatsu Forklift FR23K | 2.3 ton

Description

Komatsu Forklift FR23K | 2.3 ton

BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FR23K | 2.3 ton

The Komatsu FR23K-3 is an electric, stand-up narrow aisle single-reach truck engineered for indoor warehouse applications. It offers high efficiency using advanced AC technology and is built for tight spaces.

Key Specifications

• Load Capacity: 2,250 kg (4,500 lbs) at a 24-inch (600 mm) load center.

• Power Source: 36V electric battery system utilizing an AC drive and hydraulic motor.

• Operation Type: Stand-up side-stance positioning designed to maximize operator visibility during directional travel and load handling.

• Tire Type: Cushion/solid pneumatic and polyurethane load wheels.

Dimensions & Weights

• Chassis Width: 1,090 mm (43 inches) overall truck frame width.

• Length to Fork Face: 1,415 mm (55.6 inches) with the carriage retracted.

• Turning Radius: 1,790 mm (70.4 inches) outside turning radius for tight maneuvers.

• Maximum Reach Stroke: 570 mm (22.4 inches).

• Base Leg Width (O.D.): Adjustable between 33 to 50 inches (Interior Dimension).

• Service Weight: 2,250 kg (6,420 lbs) (base unit, empty without battery).

Performance & Mast Specs (Standard 3-Stage Mast)

• Maximum Fork Height: Up to 5,335 mm (210 inches) on standard configurations (up to 260.3 inches maximum extended variants available).

• Lowered Mast Height: 2,415 mm (95 inches).

• Free Lift Height: 1,200 mm (47.2 inches).

• Lifting Speed: 70 fpm (loaded) / 120 fpm (unloaded).

• Lowering Speed: 95 fpm (loaded) / 87 fpm (unloaded).

Operational Features

• KICS AC Control System: Manages the truck’s drive and lift functions to maximize battery efficiency and eliminate motor brush wear.

• Steer-by-Wire Technology: Provides responsive, low-effort steering control with speed sensing and straight-line stability.

• Regenerative Braking: Implements 4-mode energy recovery during plugging, coasting, and braking to prolong battery runtime.
