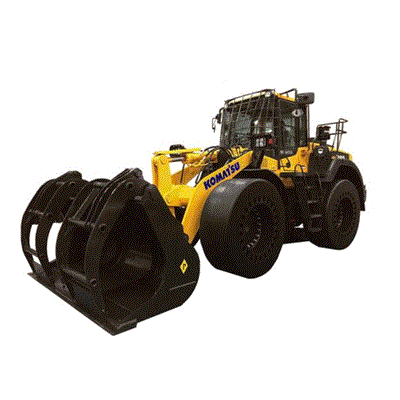

Komatsu Wheel Loader WA380-8WH | 19 ton

Description

Komatsu Wheel Loader WA380-8WH | 19 ton

BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, rconditioned Komatsu Wheel Loader WA380-8WH | 19 ton

The Komatsu WA380-8WH (Waste Handler) is a ~19-ton wheel loader specifically configured for heavy-duty waste, recycling, and industrial material handling environments. Below are the key unit specifications for this model:

General Specifications

• Operating Weight: 18,385 kg – 19,020 kg (40,532 lbs – 41,932 lbs / ~18.4 – 19.0 metric tons)

• Bucket Capacity Range: 2.7 m³ – 3.6 m³ (3.5 yd³ – 4.7 yd³)

• Static Tipping Load (Full Turn): 10,407 kg – 13,440 kg (22,943 lbs – 29,630 lbs)

• Static Tipping Load (Straight): 15,440 kg (34,044 lbs)

Engine Specs

• Model: Komatsu SAA6D107E-3

• Type: Turbocharged, air-to-air aftercooled, cooled EGR

• Emissions Standard: EPA Tier 4 Final / EU Stage IV

• Gross Horsepower: 192 HP (143 kW) @ 2,100 RPM

• Net Horsepower: 191 HP (143 kW) @ 2,100 RPM

• Displacement: 6.69 L (408 cu in)

• Bore x Stroke: 107 mm x 124 mm (4.21 in x 4.88 in)

Transmission & Drivetrain

• Transmission Type: Automatic full-powershift, countershaft type

• Torque Converter: 3-element, 1-stage, 2-phase with Auto Lock-up function

• Max Travel Speed (Forward/Reverse): 37.5 km/h (23.3 mph)

• Drive System: 4-Wheel Drive

• Steering Angle: 35° each direction (40° to max end stop)

• Turning Radius (Outside Tire Center): 6,320 mm (20 ft 9 in)

Hydraulic System

• Pump Type: Variable displacement piston pump

• Main Hydraulic Flow: 205 L/min (54.15 US gpm)

• Relief Valve Setting: 31.4 MPa (320 kgf/cm² / 4,550 psi)

• Cycle Times (At Rated Load):

  • Raise: 5.9 seconds

  • Dump: 1.8 seconds

  • Lower (Empty): 3.3 seconds

Service Capacities

• Fuel Tank: 300 L (79.3 US gal)

• DEF Tank: 36 L (9.5 US gal)

• Engine Oil: 23 L (6.1 US gal)

• Hydraulic System: 142 L (37.5 US gal)

• Cooling System: 60.6 L (16.0 US gal)

Waste Handler (WH) Guarding Package Features

The WH package adds specific protective componentry designed for harsh waste/recycling environments:

• Bucket Cylinder Guard & Axle Seal Guards

• Front & Rear Frame Underguards (protection for engine oil pan and fuel tank)

• Debris Cooling Screens (helps prevent clogging in radiator and coolers)

• Front Window, Light & Fuel Tank Guards

• Hydraulic Hose Protective Wraps
