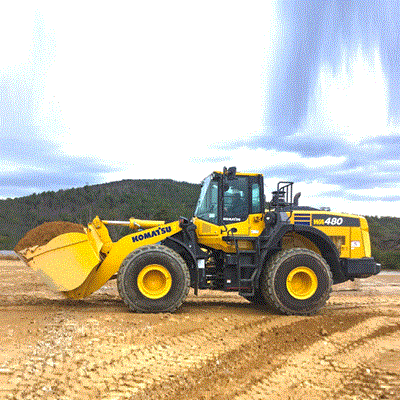

Komatsu Wheel Loader WA480-8 | 27.8 ton
Komatsu Wheel Loader WA480-8 | 27.8 ton
Key Operational Performance
Operating Weight Range 25,960 – 27,810 kg / 57,232 – 61,311 lbs.
Bucket Capacity Range 4.6 – 5.5 m³ (up to 6.1 m³ material dependent) 6.0 – 7.2 yd³.
Static Tipping Load (Full 40° Turn) ~18,340 – 20,165 kg/ ~40,430 – 44,456 lbs.
Breakout Force 206 – 244 kN /46,297 – 54,850 lbf.
Dump Height (at 45°) 2,980 – 3,165 mm / 9 ft 9 in – 10 ft 5 in.
Hinge Pin Height 4,485 mm / 14 ft 8 in.
Description
Komatsu Wheel Loader WA480-8 | 27.8 ton
BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, rconditioned Komatsu Wheel Loader WA480-8 | 27.8 ton
The Komatsu WA480-8 wheel loader has a maximum operating weight of up to 27.8 tonnes (27,810 kg / 61,311 lbs) depending on the counterweight, bucket choice, and tire configuration.
Key Operational Performance
| Feature | Metric Specification | Imperial Specification |
| Operating Weight Range | 25,960 – 27,810 kg | 57,232 – 61,311 lbs |
| Bucket Capacity Range | 4.6 – 5.5 m³ (up to 6.1 m³ material dependent) | 6.0 – 7.2 yd³ |
| Static Tipping Load (Full 40° Turn) | ~18,340 – 20,165 kg | ~40,430 – 44,456 lbs |
| Breakout Force | 206 – 244 kN | 46,297 – 54,850 lbf |
| Dump Height (at 45°) | 2,980 – 3,165 mm | 9 ft 9 in – 10 ft 5 in |
| Hinge Pin Height | 4,485 mm | 14 ft 8 in |
Engine & Powertrain
-
Engine Model: Komatsu SAA6D125E-7
-
Emissions Standard: Tier 4 Final / EU Stage IV & V compliant
-
Engine Type: 6-cylinder, water-cooled, turbocharged, direct injection diesel
-
Displacement: 11.04 L (673.7 cu in)
-
Gross Power: 224 kW (300 HP) @ 2,000 RPM
-
Net Power (ISO 9249): 223 kW (299 HP) @ 2,000 RPM
-
Transmission: Automatic powershift with lock-up torque converter
-
Max Forward / Reverse Speed: ~38.5 km/h (24 mph) / 39 km/h (24.2 mph)
Dimensions & Transport
-
Overall Length (Bucket Grounded): 9,330 – 9,645 mm
-
Width over Tires: ~3,010 mm
-
Bucket Width: 3,165 – 3,380 mm
-
Height to Top of Cab: ~3,575 mm
-
Wheelbase: 3,450 mm
-
Turning Radius (Outside Bucket Edge): 7,735 – 7,780 mm
-
Standard Tires: 26.5 R25
Hydraulics & Refill Capacities
-
Hydraulic System Type: CLSS (Closed-Center Load Sensing System) with variable piston pump
-
Max Pump Flow: 260 L/min
-
Cycle Times (Rated Load):
-
Raise: 6.4 sec
-
Dump: 1.9 sec
-
Lower (Empty): 3.8 sec
-
-
Fuel Tank Capacity: 380 L (100.4 US gal)
-
DEF Tank Capacity: 36 L (9.5 US gal)
-
Hydraulic Tank: 173 L (45.7 US gal)
-
Engine Oil: 38 L (10.0 US gal)
