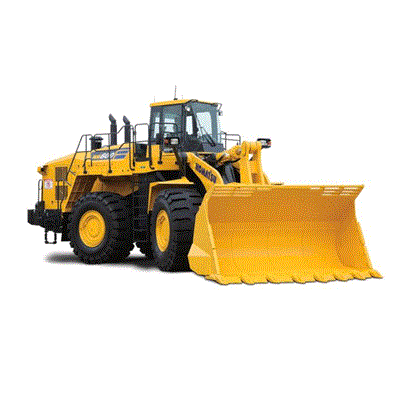

Komatsu Wheel Loader WA600-8 | 57.4 ton
BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, rconditioned Komatsu Wheel Loader WA600-8 | 57.4 ton
The complete specifications for the Komatsu WA600-8 large wheel loader (in the ~57-ton weight class) are outlined below:
General & Weight Specs
| Specification |
Metric |
Imperial |
| Operating Weight Range |
55,400 – 57,460 kg |
122,136 – 126,678 lbs |
| Nominal Operating Weight |
~57.4 tonnes (57,460 kg) |
~126,678 lbs |
| Bucket Capacity Range |
6.4 – 7.8 m³ |
8.4 – 10.2 yd³ |
| Standard Tires |
35/65-33-36PR |
35/65-33-36PR |
Engine Specifications
| Specification |
Metric / Detail |
| Engine Model |
Komatsu SAA6D170E-7 |
| Engine Type |
6-cylinder, water-cooled, direct injection, turbocharged, cooled EGR |
| Gross Horsepower (SAE J1995) |
396 kW (530 HP) @ 1,800 rpm |
| Net Horsepower (ISO 9249 / SAE J1349) |
395 kW (529 HP) @ 1,800 rpm |
| Displacement |
23.15 L (1,413 in³) |
| Bore × Stroke |
170 mm × 170 mm |
| Emission Certification |
EPA Tier 4 Final / EU Stage IV/V compliant |
Drivetrain & Travel Performance
| Specification |
Metric |
Imperial |
| Transmission |
Automatic full-powershift, planetary type |
|
| Torque Converter |
3-element, 1-stage, 2-phase with Lock-Up Clutch |
|
| Max Travel Speed (Forward) |
37.7 km/h |
23.4 mph |
| Max Travel Speed (Reverse) |
41.0 km/h |
25.5 mph |
| Steering Angle |
43° each direction |
43° each direction |
| Turning Radius (Outside Tire Center) |
7,075 mm |
23′ 3″ |
Hydraulic System & Cycle Times
| Specification |
Metric |
Imperial |
| Loader Pump Capacity (at rated rpm) |
239 + 239 L/min |
63.1 + 63.1 US gpm |
| Steering Pump Capacity |
163 L/min |
43.1 US gpm |
| Relief Valve Setting |
34.3 MPa (350 kgf/cm²) |
4,980 psi |
| Cycle Time: Raise |
8.7 seconds |
|
| Cycle Time: Dump |
2.3 seconds |
|
| Cycle Time: Lower (Empty) |
4.1 seconds |
|
Service Refill Capacities
| Fluid System |
Capacity (Metric) |
Capacity (Imperial) |
| Fuel Tank |
718 L |
189.7 US gal |
| DEF Tank |
39.7 L |
10.5 US gal |
| Cooling System |
150 L |
39.6 US gal |
| Engine Lubrication |
86 L |
22.7 US gal |
| Hydraulic Tank |
443 L |
117.0 US gal |
| Axle Oil (Front / Rear) |
185 L / 193 L |
48.9 US gal / 51.0 US gal |
| Transmission & Torque Converter |
78 L |
20.6 US gal |
