Lonking Excavator CDM6010 | 1 ton

Description

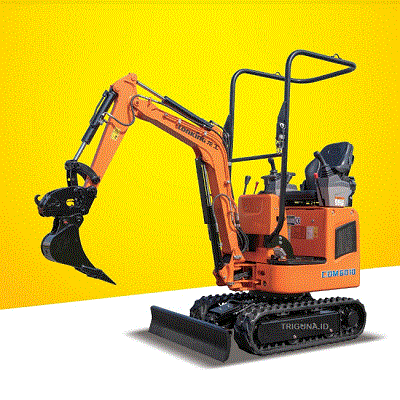

Lonking Excavator CDM6010 | 1 ton

BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, rconditioned Lonking Excavator CDM6010 | 1 ton

Technical Specifications

1. General & Weight

• Operating Weight: 1,010 kg (approx. 1.01 tons)

• Standard Bucket Capacity: 0.022 m³

• Standard Bucket Width: 320 mm

• Ground Pressure: 24.5 kPa

• Gradeability: 30°

2. Engine & Performance

• Engine Brand/Model: Yanmar 2TNV70

• Engine Type: Inline, 2-cylinder, liquid-cooled diesel

• Power Output: 7.2 kW to 7.5 kW @ 2400 rpm

• Displacement: 0.57 L

• Emission Standard: EU Stage V compliant (low noise and minimal emissions)

• Fuel Tank Capacity: 9.4 L

3. Hydraulics & Digging Forces

• Max. Hydraulic Flow: 9.6 × 3 L/min

• Max. Working Pressure: 16 MPa

• Max. Bucket Digging Force: 9.4 kN

• Max. Arm Digging Force: 5.8 kN

• Hydraulic Oil Tank: 9.5 L

4. Working Range & Undercarriage

• Travel Speed: 1.5 / 2.9 km/h (dual speed modes)

• Swing Speed: 8.2 rpm

• Boom Swing Angle (Left/Right): 73° / 53°

• Track Type: Rubber crawler (low ground disturbance)

• Track Width: 180 mm

Key Features

• Retractable/Telescopic Undercarriage: The chassis width can be hydraulically retracted down to 750 mm to pass through narrow garden gates or indoor doorways, and extended up to 1000 mm to increase operational stability by roughly 15%.

• Hydraulic Pilot Control: Features standard joystick control levers instead of stiff mechanical linkages, allowing for smooth, fatigue-free operating precision.

• Easy Transport: Features an integrated TOPS canopy and three secure lifting points on the frame for safe crane hoisting and easy trailering.
