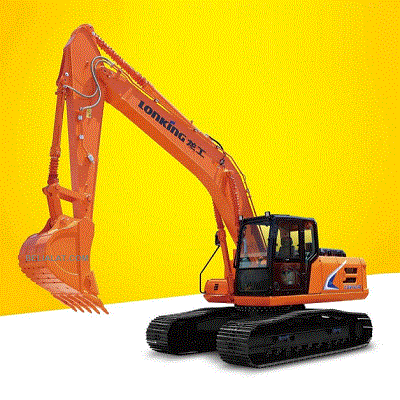

Lonking Excavator CDM6240 | 22.6 ton

Description

Lonking Excavator CDM6240 | 22.6 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Lonking Excavator CDM6240 | 22.6 ton

Technical specifications for the Lonking CDM6240 hydraulic crawler excavator (22.6-ton class) cover key operational, dimension, and performance parameters:

Engine & Powertrain

• Engine Model: Cummins 6BTAA5.9-C (6-cylinder, direct injection, turbocharged)

• Rated Power: 133 kW (178 hp) @ 2,000 RPM

• Engine Displacement: 5.9 L

• Maximum Torque: 708 Nm @ 1,500 RPM

• Emission Level: EU Stage II / EPA Tier 2

Operating Parameters & Capacities

• Operating Weight: 22,600 kg (22.6 tons)

• Standard Bucket Capacity: 1.16 m³

• Max. Travel Speed: 3.0 / 5.1 km/h (Low / High)

• Max. Swing Speed: 12.1 RPM

• Max. Traction Force: 217 kN

• Bucket Tear-Out (Breakout) Force: 147 kN

Working Ranges & Digging Dimensions

• Maximum Horizontal Reach: 9,745 mm (9.75 m)

• Maximum Dredging / Digging Depth: 6,566 mm (6.57 m)

Transport Dimensions & Undercarriage

• Overall Transport Length: 9,522 mm (9.52 m)

• Overall Transport Width: 2,990 mm (2.99 m)

• Overall Transport Height: 3,032 mm (3.03 m)

• Standard Track Shoe Width: 600 mm
