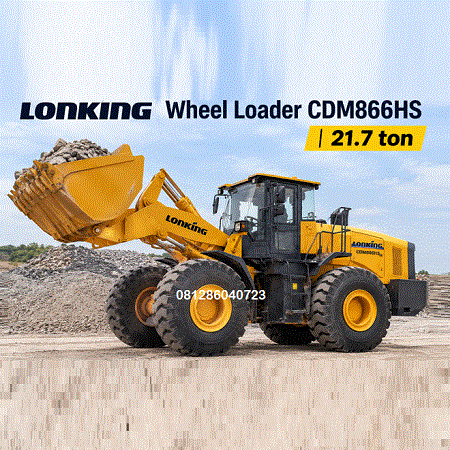

Lonking Wheel Loader CDM866HS | 21.7 ton

Description

Lonking Wheel Loader CDM866HS | 21.7 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Lonking Wheel Loader CDM866HS | 21.7 ton

Here are the detailed technical specifications for the Lonking Wheel Loader CDM866HS (21.7-ton class):

Key Performance Specs

• Operating Weight: 21,700 ± 300 kg

• Rated Payload: 6,500 kg

• Standard Bucket Capacity: 4.2 m³

• Max. Traction Force: 180 ± 5 kN

• Max. Breakout Force: 210 ± 5 kN

• Hydraulic Cycle Time: 10.8 seconds

Engine Specifications

• Engine Model: WEICHAI WP10G240E341

• Rated Power: 178 kW (239 HP) @ 2,200 rpm

• Max. Torque: 1,200 N·m @ 1,400–1,600 rpm

• Number of Cylinders / Displacement: 6-Cylinder / 9.726 L

• Bore × Stroke: 126 × 130 mm

• Air Cleaner: 3-stage air cleaner (with optional oil-bath filter)

Drivetrain & Transmission

• Transmission Type: ZF Automatic Electronic Powershift

• Torque Converter: Single-stage, 3-element turbine

• Axles: LONKING Rigid (Front) & Oscillating ±10° (Rear)

• Tire Size: 26.5-25 L-3 24PR TT

• Max. Travel Speed (Forward): 38.0 km/h

• Max. Travel Speed (Reverse): 25.6 km/h

Dimensions & Working Range

• Overall Dimensions (L × W × H): 8,860 × 3,200 × 3,540 mm

• Dump Clearance (at Max. Lift 45°): 3,450 mm

• Dump Reach (at Max. Lift 45°): 1,300 mm

• Bucket Pin Height (Max. Lift): 4,720 mm

• Wheelbase: 3,450 mm

• Ground Clearance: 480 mm

• Min. Turning Radius (Over Bucket): 7,750 mm

Hydraulic & Control Systems

• Control System: Single-lever Joystick Pilot Control with integrated FNR switch

• Working Pump Displacement: 232 L/min @ 2,200 rpm

• Working System Pressure: 19 MPa

• Steering Type: Hydraulic Load Sensing (±35° angle)

Brakes & Fluid Capacities

• Service Brakes: Single-circuit caliper, dry brake

• Parking & Emergency Brakes: Pneumatic drum brake

• Fuel Tank Capacity: 330 L

• Hydraulic Tank Capacity: 270 L

• Transmission Fluid: 48 L

• Axle Fluid (Front / Rear): 31 L / 31 L

Standard Cabin & Comfort Features

• ROPS & FOPS certified cabin with sound/vibration damping

• LCD dashboard & Rear-view camera

• Air Conditioning (A/C) & Electric heated rear window
