Description
Lonking Wheel Loader LG833H-E | 10.2 ton
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Lonking Wheel Loader LG833H-E | 10.2 ton

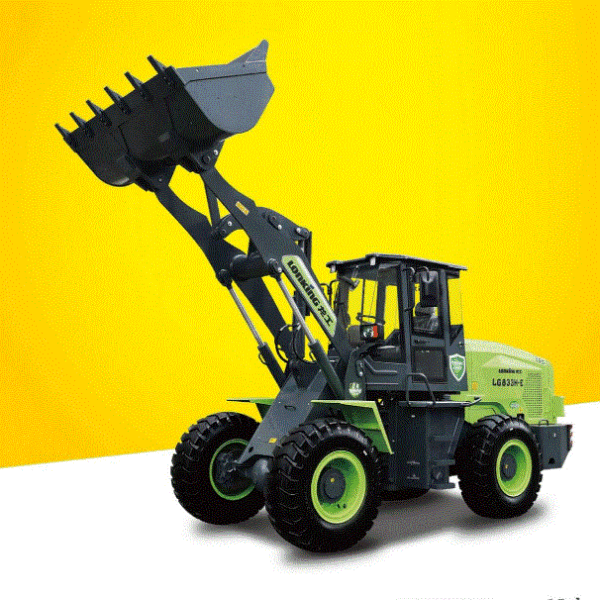

The Lonking LG833H-E is a 10.2-ton (10,200 kg) fully electric wheel loader designed for zero-emission operations in industrial, construction, and agricultural environments.
General Operational Performance
-
Operating Weight: 10,200 pm 300 kg (10.2 tonnes)
-
Rated Payload: 3,000 kg (3.0 tons)
-
Standard Bucket Capacity: 1.7 m3 (optional 1.8 m3)
-
Breakout Force: 95 pm 5 kN
-
Traction Force: 95 pm 5 kN
Electrical & Powertrain Specs
-
Battery Type: CATL Lithium Iron Phosphate (LFP)
-
Battery Capacity: 141 kWh (Standard) / 181 kWh (Optional extra capacity)
-
System Voltage: 618 V
-
Traveling Motor (Drive): 70 kW Rated Power | 700 N·m Torque | 955 rpm
-
Pump Motor (Hydraulics): 35 kW Rated Power | 300 N·m Torque | 1,100 rpm
-
Transmission Type: LONKING Countershaft Electronic Powershift
-
Max Travel Speed: Forward: 14 / 36 km/h | Reverse: 14 km/h
Key Dimensions & Capabilities
| Dimension Parameter | Specification |
| Overall Dimensions (L / W / H) | L7,542/ W 2,500/ H 3,230 mm |
| Wheelbase | 2,900 mm |
| Ground Clearance | 362 mm |
| Max Dump Clearance (at 45°) | 3,335 mm |
| Reach at Max Lift (45°) | 960 mm |
| Bucket Pin Height (Max Lift) | 4,080 mm |
| Min. Turning Radius (over Tires) | 5,465 mm |
| Min. Turning Radius (over Bucket) | 6,065 mm |
| Steering Angle | pm 35circ |
Brakes & Hydraulics
-
Service Brake: Single Circuit Caliper, Dry Brake (Setting pressure: 0.70–0.78 MPa)
-
Steering System: Load Sensing Hydraulic System (14 MPa pressure, 160 ml/r pump)
-
Working Hydraulic Pressure: 19 MPa (112 ml/r pump, pilot joystick control)
-
Tire Size: 17.5–25 12PR
-
Hydraulic Tank Refill: 165 L
