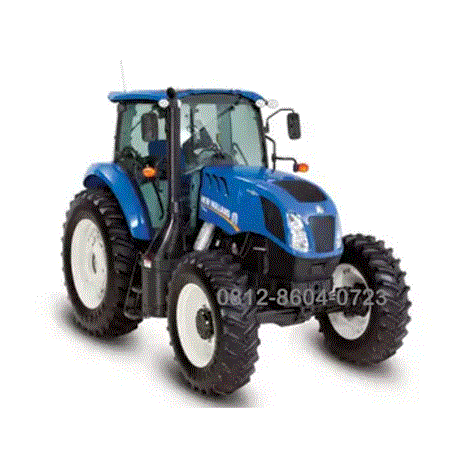

New Holland Tractor TS6130 | 130 hp

Description

New Holland Tractor TS6130 | 130 hp

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned New Holland Tractor TS6120 | 120 hp

The New Holland TS6.130 is a versatile all-purpose tractor in the TS6 Series II lineup.
It is designed to balance power and simplicity, making it ideal for loader work, haying, and general farm tasks.
Below are the detailed technical specifications for the 130 hp unit.

Engine Performance

Engine Model: FPT (Fiat Powertrain) NEF.
Type: 4-cylinder, 16-valve, High-pressure Common Rail (HPCR).
Aspiration: Turbocharged with air-to-air intercooler.
Rated Horsepower: 130 hp @ 2200 RPM.
Rated PTO Horsepower: 112 hp.
Displacement: 4.5 L (274 cu in).
Emissions Level: Tier 4B / Final (using ECOBlue™ HI-eSCR technology).
Fuel Capacity: 57.5 gal (217.6 L).
DEF (AdBlue) Capacity: 7.9 gal (30 L).

Transmission & PTO

The TS6.130 offers several transmission options depending on the “Value” or “Plus” package selected:
Base: 8×8 Synchronized Hydraulic Shuttle (Left-hand shuttle).
Premium: 16×8 Dual Power Synchronized Hydraulic Shuttle (Hi-Lo).
Optional: 10:1 Creeper gear (for ultra-slow tasks).
Max Speed: 19 mph (30 kph) or 25 mph (40 kph) depending on configuration.
PTO Speeds: 540 / 1000 RPM.

Hydraulics & 3-Point Hitch

System Type: Open center (fixed displacement pumps).
Standard Implement Pump Flow: 13 gpm (49 L/min).
Total Flow (with Optional Aux Pump): Up to 22–29 gpm (109.8 L/min).
3-Point Hitch Category: Category II with flex link ends.
Standard Lift Capacity: 3,735 lbs (1,693 kg).
Max Lift Capacity: Up to 7,326 lbs (3,323 kg) with two optional assist rams.

Dimensions & Weight

Wheelbase: 103.9 inches (4WD version).
Approx. Shipping Weight: ~11,000 lbs (4,990 kg) (Base 4WD ROPS)31.
Total Max Operating Weight: Up to 17,196 lbs (7,800 kg) depending on ballasting.
Height (Top of Cab): 110.2 inches (2.8 m).
Overall Length: 184.7 inches (4.69 m).

Key Features

VisionView™ Cab: Offers 360-degree visibility, a high-visibility roof panel (perfect for loaders), and a CommandArc™ console.
Axle Options: Available in heavy-duty 2WD or 4WD (Class 3) configurations.
Loader Ready: Optimized for New Holland 800LA series front loaders.
