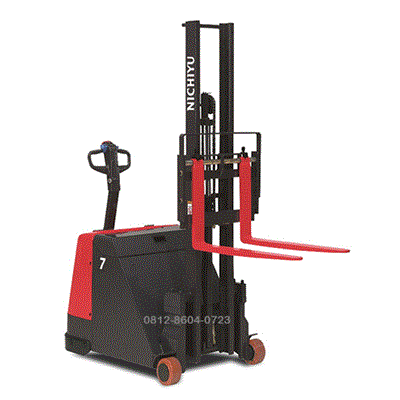

Nichiyu Pallet Stacker FBD7 | 0.7 ton

Description

Nichiyu Pallet Stacker FBD7 | 0.7 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Pallet Stacker FBD7 | 0.7 ton

This highly maneuverable straddle leg model boasts a tight turning radius

Outstanding turning performance

This  easy, compact, and convenient lift truck handles exceptionally tight turns. The minimum turning radius is only 1,430 mm,*  ensuring good maneuverability even in confined spaces

Lorry with  entire roll box pallets

your lorry lacks a lifter, products that have been  picked inside the factory or delivery center must be reloaded to the lorry, which is highly inefficient. Tho SBW Series, however, is capable of loading an entire roll box pallet onto a truck

This lightweight  model can be operated on upper floors with  confidence

This compact and lightweight lift truck is the ideal choice for use on upper floors. What’s more, it won’t overload your freight
elevator.

Choose the mast height that meets your lifting  needs

However Both single mast and two stage mast models are available. Choose from the  seven models of FBD  Series and three models of SBW  Series with two stage masts

Performance

Capacity kg : 900
Load dimensions (L x W) mm : 1100 x 1200.

Load center mm : 550
Lift height maximum : 1055 mm.

Lifting speed laden : 330 mm/s , Unladen : 390 mm/s
Traveling speed laden : 9.5 km/h, unladen : 10 km/h.

Rotating speed of forks : 12 s/180°
Shift speed : 240 mm/s.

Main aisle width (calculated) : 3180 mm
Stacking aisle width B : 1480 mm.

Dimensions

Overall length C : 2778 mm.
width (with across guide rollers) D : 1450 mm.

Overhead guard height E : 2280 mm
Fork length : 850 mm | Fork width F : 100 mm.

Wheelbase G : 1500 mm
Front overhang H : 770 mm.

Shift stroke I : 1175 mm
Lowered fork height J : 60 (to bottom of fork)
Minimum turning radius K : 1760 mm

Tire

Drive wheel : 380 X 165 mm/ Rubber | Load wheel : 127 X 92 mm/ Urethane | Casters wheel : 204 X 76 mm/ Urethane

Control Motors

Travel : 5 kw | Control method : Invrter | Hydraulic : 11 kw / Inverter | Steering : 0.3 kw/ Fet chopper | Shift & Rotate drive method : Electric / Fet chopper

Battery

Battery capacity : 48 V /320 Ah / 5HR | Charger type : Built-in 4.3 kVA/ Stationary 4.7 kva
