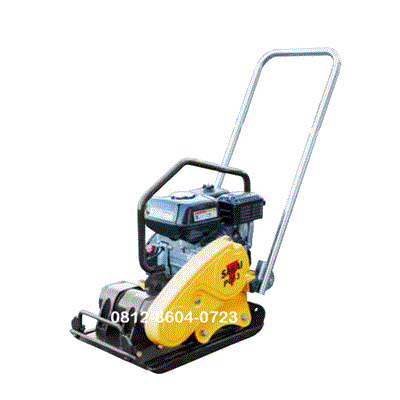

Sakai Plate Compactor PC63 | 64 kg

Description

Sakai Plate Compactor PC63 | 64 kg

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Plate Compactor PC63 | 64 kg

The Sakai PC63 is a light-duty, single-direction plate compactor known for its durability and high-performance compaction in tight spaces.
Below are the primary technical specifications for the Sakai PC63:

Feature Specification

Operating Weight 64 kg (141 lbs).
lass=”yoast-text-mark” />>Overall Length 915 mm (36 in).
=”yoast-text-mark” />>Overall Width 360 mm (14.2 in).
>Overall Height 850 mm (33.5 in).
Plate Size (W x L) 360 x 545 mm (14.2 x 21.5 in).

Performance & Engine

The PC63 is typically powered by a reliable Honda gasoline engine, designed for easy starts and fuel efficiency.
Engine Model: Honda GX1204.
Engine Type: Air-cooled, 4-cycle, Gasoline.
Max Output: ~2.8 kW (3.8 HP).
Vibration Frequency: 93.3 Hz (5,600 vpm).
Centrifugal Force: ~11.8 kN (2,650 lbs).
Travel Speed: 20–25 m/min.

Key Features

Low Hand-Arm Vibration: Features Sakai’s original rubber shock absorbers, which reduce vibration felt by the operator by approximately 30%.
180° Rotatable Plate: The bottom plate can be turned 180 degrees to ensure even wear and extend the overall service life of the unit.
Durability: Constructed with high-tensile steel for the vibrating plate to withstand harsh job site conditions.
Maintenance: One-touch belt cover design allows for quick inspections of the drive belt.
Note: Specifications can vary slightly based on the specific year of manufacture or regional model variants. Always check the machine’s serial plate for the most accurate data for your specific unit.
