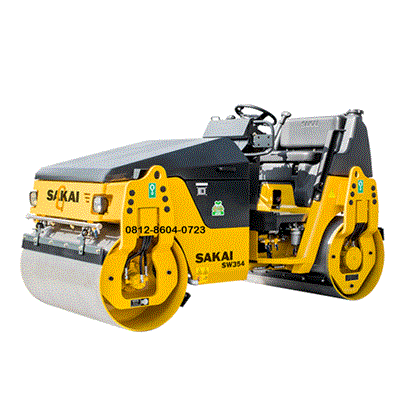

Sakai Tandem Roller SW354 | 2.9 ton

Description

Sakai Tandem Roller SW354 | 2.9 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW354 | 2.9 ton

The Sakai SW354 is a 3-ton class vibratory tandem roller designed primarily for small to medium-sized asphalt projects, such as driveways, parking lots, and road maintenance.
It is well-regarded for its mechanical simplicity, featuring a Tier 4 Final engine that does not require a Diesel Particulate Filter (DPF).
Below are the detailed technical specifications for the unit:

Weights & Dimensions

The SW354 is a compact unit designed for high maneuverability in tight spaces.
Feature Specification (Metric) Specification (Imperial).
Operating Weight 2,900 – 2,960 kg/ 6,395 – 6,525 lbs.
lass=”yoast-text-mark” />>Overall Length 2,675 mm /105 in.
s=”yoast-text-mark” />>Overall Width 1,290 mm /51 in.
>Overall Height (to ROPS) 2,455 mm /97 in.
Drum Width 1,200 mm /47 in.
Drum Diameter 675 mm /27 in.
Wheelbase 2,000 mm /79 in.
Ground Clearance 250 mm /10 in.

Engine & Performance

Equipped with a reliable Kubota engine, it focuses on fuel efficiency through its “Eco Mode.”
Engine Make/Model: Kubota D1703-M-DI-EF03 (Tier 4 Final).
Engine Type: Water-cooled, 4-cycle, 3-cylinder diesel.
Rated Output: 18.2 kW (24 HP) @ 2,200 rpm.
Travel Speed: 0 – 10 km/h (Low: 0–7 km/h).
Gradeability: 38% (21°).
Steering: Articulated (Hydraulic).
Turning Radius (Outside): 3.7 meters.

Compaction System

The SW354 uses a double-drum vibration system with high-frequency output to ensure a smooth finish.
Vibration Frequency: 66.7 Hz (4,000 vpm)
Centrifugal Force: 29 kN (6,520 lbs)
Nominal Amplitude: 0.31 mm (0.012 in)
Drum Drive: Dual drum hydrostatic drive
Vibrator Type: Eccentric shaft

Fluid Capacities

Fuel Tank: 40 Liters (10.6 gal).
Water Sprinkler Tank: 200 Liters (53 gal) — Features triple-filtration and anti-clog system.
Hydraulic Oil Tank: 43 Liters (11.4 gal).

Key Features

Eco Mode: Reduces fuel consumption by up to 35% while maintaining performance.
Safety: Features a 1m x 1m visibility standard, emergency brake pedal, and neutral-start interlocks.
Maintenance: Easy access to the engine compartment and a rust-free plastic water tank.
