Sakai Tandem Roller SW888 | 12.4 ton

Description

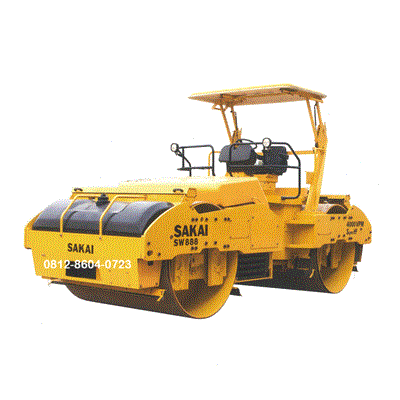

Sakai Tandem Roller SW888 | 12.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW888 | 12.4 ton

The Sakai SW888 is a heavy-duty vibratory tandem roller designed for high-performance asphalt compaction, such as on highways and airport runways. It is well-regarded for its high-frequency vibration system and operator safety features.
Below are the detailed technical specifications for the Sakai SW888:

Weights & Ground Pressure

The unit sits in the 12–13 ton class, depending on its configuration (with or without awning/cab).
Specification Value (Metric) Value (Imperial).

Operating Weight 12,460 kg 27,470 lbs.
Max. Operating Weight 13,190 kg 29,080 lbs.

Load on Front Axle 6,230 kg 13,735 lbs.
Load on Rear Axle 6,230 kg 13,735 lbs.
Static Linear Pressure 31.2 kg/cm 174 lbs/in.

Engine Performance

Feature Details
Make & Model DEUTZ BF4M2012C (Turbocharged).

Type Diesel, Water-cooled, 4-cycle, 4-cylinder.
Rated Output 100 kW (134 HP) @ 2,400 rpm.

Displacement 4.038 L.
Fuel Tank Capacity 292 L (77.1 gal).

Compaction System (Vibration)

The SW888 is known for its “High Frequency” capability, allowing for faster rolling speeds without sacrificing density.
Vibration Frequency: 41.7 – 66.7 Hz (2,500 – 4,000 vpm).

Centrifugal Force: 163 kN (max).
Nominal Amplitude: 0.33 mm – 0.55 mm.

Vibrator Type: Double eccentric shaft.
Number of Settings: 5 levels of centrifugal force.

Dimensions & Mobility

Overall Length: 5,940 mm (234 in).
Overall Width: 2,245 mm (88 in).

Drum Width: 2,000 mm (79 in).
Drum Diameter: 1,400 mm (55 in).

Travel Speed: 0 – 11 km/h.
Turning Radius: 4.3 m (Inside) / 6.3 m (Outside).
Gradeability: 29% (16°).

Key Features

Emergency Brake: Features Sakai’s unique emergency brake pedal for enhanced job site safety.
Sprinkler System: Pressurized water system with dual 600L tanks (1,200L total capacity) and triple-protection filtration.

Operator Comfort: 180° swiveling operator console for better visibility of drum edges.
All-Wheel Drive: Hydrostatic drive system on both drums for superior traction.
