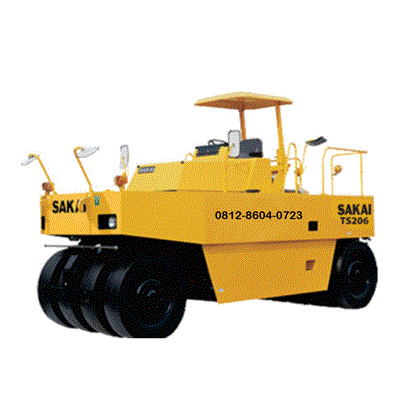

Sakai Tire Roller TS200 | 15 ton

Description

Sakai Tire Roller TS200 | 15 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tire Roller TS200 | 15 ton

Specification Unit Sakai Tire Roller TS200 | 15 ton

WEIGHTS

Max. operating weight kg(lb) 15,080(33,245)
Operating weight kg(lb) 10,790(23,785)
Load on front kg(lb) 4,310(9,500)
Load on rear kg(lb) 6,480(14,285)

DIMENSIONS

Overall length mm(in) 5,040(198)
Overall width mm(in) 2,065(81) 2,275(90)
Overall height mm(in) 3,205(126) 3,180(125)
Wheelbase mm(in) 3,700(146).

ENGINE

Make ISUZU
Model BB-6BG1
Type Diesel, water cooled, 4 cycle, direct injection type

Fuel

Diesel fuel, conforming to EN590
Class 2/Grade D. Paraffinic fuel
capability (HVO, GTL, BTL),
conforming to EN 15940:2016

Transmission

Type : Hydrostatic
Pumps : 2 × variable displacement.

Hydraulic motors : 2 × axial pistons.
No. of speeds : 2.

Max. travel speed 16 km/h
Automatic working and parking brakes

Hydraulic system

Type Komatsu CLSS
Hydraulic pump Gear pump.

Max. pump flow 62 l/min
Max. operating pressure 190 bar
Max. pump flow – “Super Flow” (option) 100 l/min

Performance

Rated operating capacity : 345 kg  ( 760.60 in )
Tipping load : 690 kg ( 1521.19 in ).

Maximum travel speed : 10.3 km/h  ( 6.4 mph )
Maximum drawbar pull : 10.1 kN ( 2270.57 lbf ).

Lift arm breakout force : 7.6 kN ( 1708.55 lbf )
Bucket breakout force : 8.7 kN ( 1955.84 lbf )
Gradeability : 25°

Hydraulic System

Maximum flow : 38 L/min ( 10.04 gal/min )
Pressure – Working equipment circuit : 19 MPa ( 2755.72 psi ).

Pressure – Travel circuit : 25 MPa ( 3625.94 psi )
Pressure – Pilot circuit : 2.4 MPa ( 348.09 psi )

Operating weight (appr.)

Weight, including open cab, operator (75 kg), liquids,
filled tank and standard equipment (without bucket) : 2675 kg.

Standard bucket (1580 mm) + 172 kg
Additional counterweight + 120 kg
Front door + 40 kg

Service refill capacities

Fuel tank 67 l
Cooling system 9.0 l
Engine oil 7.5 l
Hydraulic system 27 l
Final transmission 14.4 l

Environment

Engine emissions Fully complies with EU Stage V
exhaust emission regulations.

Noise levels.
LwA external 85 dB(A) (2000/14/EC Stage II)
LpA operator ear 101 dB(A) (ISO 6396 dynamic test).

Vibration levels (EN 12096:1997)
Hand/arm ≤ 2.5 m/s² (uncertainty K = 1.2 m/s²)
Body ≤ 0.5 m/s² (uncertainty K = 0.2 m/s²)

The Sakai TS200 is a versatile static pneumatic tire roller in the 10–15 ton class, specifically designed for finishing and compaction on medium to large paving projects.1 It is well-regarded for its “kneading effect,” which helps achieve high-density asphalt surfaces.
Below are the detailed specifications for the 15-ton configuration:

Weights & Capacities

The TS200 is highly adaptable through ballasting to reach its maximum 15-ton operating weight.

Item Specification
Operating Weight (No Ballast) ~8,500 kg (18,740 lbs).
Operating Weight (With Metal Ballast) ~10,500 kg (23,150 lbs).
Operating Weight (With Water Ballast) ~13,000 kg (28,660 lbs).
Max Operating Weight (Metal + Water) 15,000 kg (33,070 lbs).
Fuel Tank Capacity 95 L (25 gal).
Water Sprinkler Tank 4,500 L (1,184 gal).

Engine & Performance

Powered by a reliable Isuzu diesel engine, the TS200 is built for steady, continuous operation.
Engine Make/Model: Isuzu BB-6BG1 (Diesel, water-cooled, 4-cycle).
Rated Output: 68 kW (91 HP) @ 1,800 rpm.
Number of Speeds: 4 Forward / 4 Reverse.
Speed Range: 0 – 19 km/h (0 – 11.8 mph).
Gradeability: 42% (23°).
Turning Radius: 6.7 m (outer).

Compaction & Tires

The 9-wheel configuration ensures full coverage and overlap to prevent “ridging” on asphalt.
Number of Tires: 9 (4 Front / 5 Rear).
Tire Size: 9.00-20-10PR.
Compaction Width: 2,065 mm (81 in).
Tire Overlap: 35 mm (1.4 in).
Sprinkler System: Pressurized water system with intermittent timer (standard).

Dimensions

Overall Length: 4,860 mm.
lass=”yoast-text-mark” />>Overall Width: 2,065 mm.
>Overall Height: 3,205 mm (unfolded awning) / 2,490 mm (folded).
Wheelbase: 3,700 mm.
Ground Clearance: 225 mm (with ballast).

Key Features

Zero Side Clearance: Allows for easy rolling right up against curbs and buildings.
Tilting Front Wheels: A mechanical tilting system ensures the front tires maintain continuous contact even on uneven surfaces.
Operator Comfort: Features a fold-down awning for transport and a pressurized spray system to prevent hot mix asphalt (HMA) from sticking to the tires.
