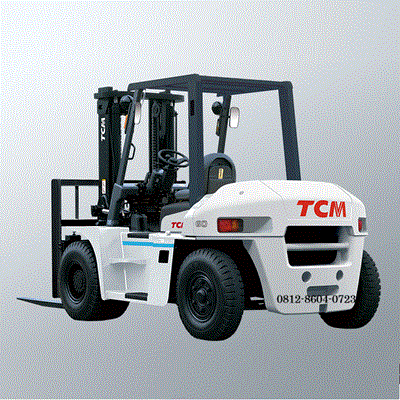

TCM Forklift FD100Z8 | 10 Ton

Description

TCM Forklift FD100Z8 | 10 Ton

The TCM FD100Z8 is a heavy-duty diesel forklift designed for high-capacity industrial applications. Part of the Z8 series (Unicarriers), it is well-regarded for its reliability and use of the powerful Isuzu 6BG1 engine.

Below are the key specifications for the 10-ton unit:

Engine Specifications

Model: Isuzu 6BG1 (Low vibration, Tier 2 compliant).
Type: 6-cylinder, water-cooled diesel.
Displacement: 6.494 liters.
Rated Power: 84.6 kW (115 PS) at 2,100 rpm.
Rated Torque: 416.5 N.m at 1,500 rpm.
Fuel Tank Capacity: 140 liters.

Performance & Capacity

Rated Capacity: 10,000 kg (10 Ton).
Load Center: 600 mm.
Travel Speed (Full Load / No Load): 24.0 / 30.0 km/h.
Lifting Speed (Full Load): 410 mm/s.
Gradeability (Full Load): Approx. 20% to 22%.
Turning Radius (Outside): 3,900 mm.

Dimensions & Weight

Overall Length (to fork face): 4,255 mm.
Overall Width: 2,245 mm.
Mast Height (Lowered): 2,850 mm (Standard VM300 mast).
Mast Height (Extended): 4,330 mm.
Overhead Guard Height: 2,560 mm.
Service Weight: Approx. 12,300 kg.

Mast & Tires

Standard Lift Height: 3,000 mm (Options available up to 6,000 mm).
Tilt Angle (Forward/Backward): 6 circ / 12 circ.
Tires (Front): 9.00-20-14PR (Dual wheels).
Tires (Rear): 9.00-20-14PR.
Transmission: Automatic Powershift (Torque Converter).

Key Features

Automatic Transmission: Features a single electronic control lever for easy operation and smooth travel.
High Visibility: The “Wide View” mast design and boltless floorboards provide better operator sightlines and easier maintenance access.
Environmental Efficiency: Includes smoke reduction technology (approx. 30% reduction in black smoke compared to older models).
Would you like me to compare these specs with a similar 10-ton model from another brand, such as Toyota or Komatsu?

Berikut adalah spesifikasi utama unit TCM Forklift FD50T9 dengan kapasitas 5 Ton:

Spesifikasi Utama

• Kapasitas Angkat (Load Capacity): 5.000 kg (5 Ton)

• Pusat Beban (Load Center): 600 mm

• Tinggi Angkat Maksimal (Max Lift Height): 3.000 mm (tersedia opsi mast lain sesuai kebutuhan)

• Radius Putar Luar (Outside Turning Radius): 3.040 mm

Mesin & Performa

• Model Mesin: Mitsubishi S6S Diesel (6-Silinder)

• Tipe Bahan Bakar: Diesel / Solar

• Output Mesin: 64,7 kW (88 PS) pada 2.300 rpm

• Torsi Maksimum: 284 N·m pada 1.600 rpm

• Transmisi: Otomatis (Automatic Powershift) 2-kecepatan (tersedia juga varian manual tergantung pasar lokal)

Dimensi Fisik

• Panjang Keseluruhan (tanpa garpu): 3.390 mm

• Lebar Keseluruhan: 1.480 mm

• Tinggi Mast Saat Diturunkan: 2.360 mm

• Tinggi Overhead Guard: 2.250 mm

• Panjang Garpu Standar: 1.220 mm

• Jarak Sumbu Roda (Wheelbase): 2.200 mm

• Jarak Terendah ke Tanah (Min. Ground Clearance): 140 mm (pada bagian mast)

Fitur Unggulan

• Mesin Rendah Getaran: Penggunaan mesin 6-silinder Mitsubishi S6S memberikan performa bertenaga sekaligus mengurangi getaran dan kebisingan secara signifikan demi kenyamanan operator.

• Transmisi Otomatis 2-Speed: Sistem transmisi otomatisnya mempermudah perpindahan gigi maju secara halus berdasarkan injakan pedal akselerator tanpa perlu operan manual.

• Keamanan Terjaga: Dilengkapi dengan fitur keselamatan seperti neutral safety mechanism (mesin tidak bisa menyala jika tuas transmisi tidak di posisi netral) dan kursi suspensi keselamatan dengan pelindung samping.
