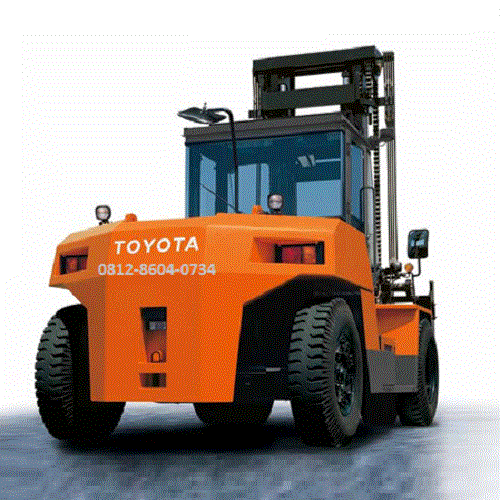

Toyota Forklift 4FDK150 | 15 ton

Description

Toyota Forklift 4FDK150 | 15 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 4FDK150 | 15 ton

Main Specification, Toyota Forklift 4FDK150 | 15 ton

Model : 4FDK150
Engine Model : HINO J08E-T
Load Capacity ; 15000 kg
Load Center : 600 mm
Overall Width A : 2,385 mm
Turning Radius(outside) B : 4000 mm
Overhead Guard  Height C : 2,945/2,985 mm
Length to Fork Face D : 4270 mm

Engine Specifications

Model : HINO J08E-T
Piston Displacement : 7684 cc
Rated Horsepower/r.p.m. : 125 / 2,300 (170 / 2,300) kw (JISps)
Rated Torque/r.p.m : 550 / 1,600 ( 56 / 1,600) Nm ( JISkgfm )

The Toyota 4FDK150 is a heavy-duty, internal combustion diesel forklift designed for high-capacity industrial applications.
The “K” in the model name typically indicates a more compact chassis compared to the standard 15-ton 4FD150, making it ideal for heavy lifting in tighter operational spaces.
Below are the primary specifications for this unit:

Performance & Capacity

Rated Load Capacity: 15,000 kg (15 tons).
Load Center: 600 mm.
Lifting Speed (Full Load): ~350 mm/sec.
Lowering Speed (Full Load): ~430 mm/sec.
Travel Speed (No Load): ~24–30 km/h.

Engine Specifications

The unit is powered by a high-torque Hino industrial engine, known for durability in heavy-duty cycles.
Engine Model: Hino J08E-T (Turbocharged Diesel).
Displacement: 7,684 cc (7.7 Liters).
Rated Output: 125 kW @ 2,300 rpm (~168 HP).
Rated Torque: 550 Nm @ 1,600 rpm.
Fuel Tank Capacity: ~320 Liters.

Dimensions & Weight

Length to Fork Face: ~4,590 mm to 4,620 mm.
Overall Width: ~2,415 mm.
Overhead Guard Height: ~2,960 mm (standard).
Turning Radius (Outside): ~4,300 mm.
Standard Fork Length: 1,220 mm.

Mast & Hydraulics

Standard Mast Type: 2-stage Wide Visible Mast (V).
Standard Lift Height: 3,000 mm (Options available up to 6,000 mm).
Tilt Angle (Forward/Backward): 6° / 12°.
Brake System: Wet Disc Brakes (Oil-cooled for high durability and lower maintenance).

Key Features

System of Active Stability (SAS): Toyota’s proprietary technology that monitors forklift operations to protect the operator and the load.
Operator Presence Sensing (OPS): Automatically locks hydraulic and travel functions if the operator is not seated.
Transmission: Automatic Powershift (2 forward / 1 reverse).
Wet Disc Brakes: Unlike traditional drum brakes, these are enclosed and cooled by oil, providing superior stopping power in dusty or wet environments with almost zero maintenance.
Note: Dimensions and lift heights can vary significantly depending on the specific mast (V, FV, or FSV) and tire configuration (Pneumatic or Solid) installed on your specific unit.
